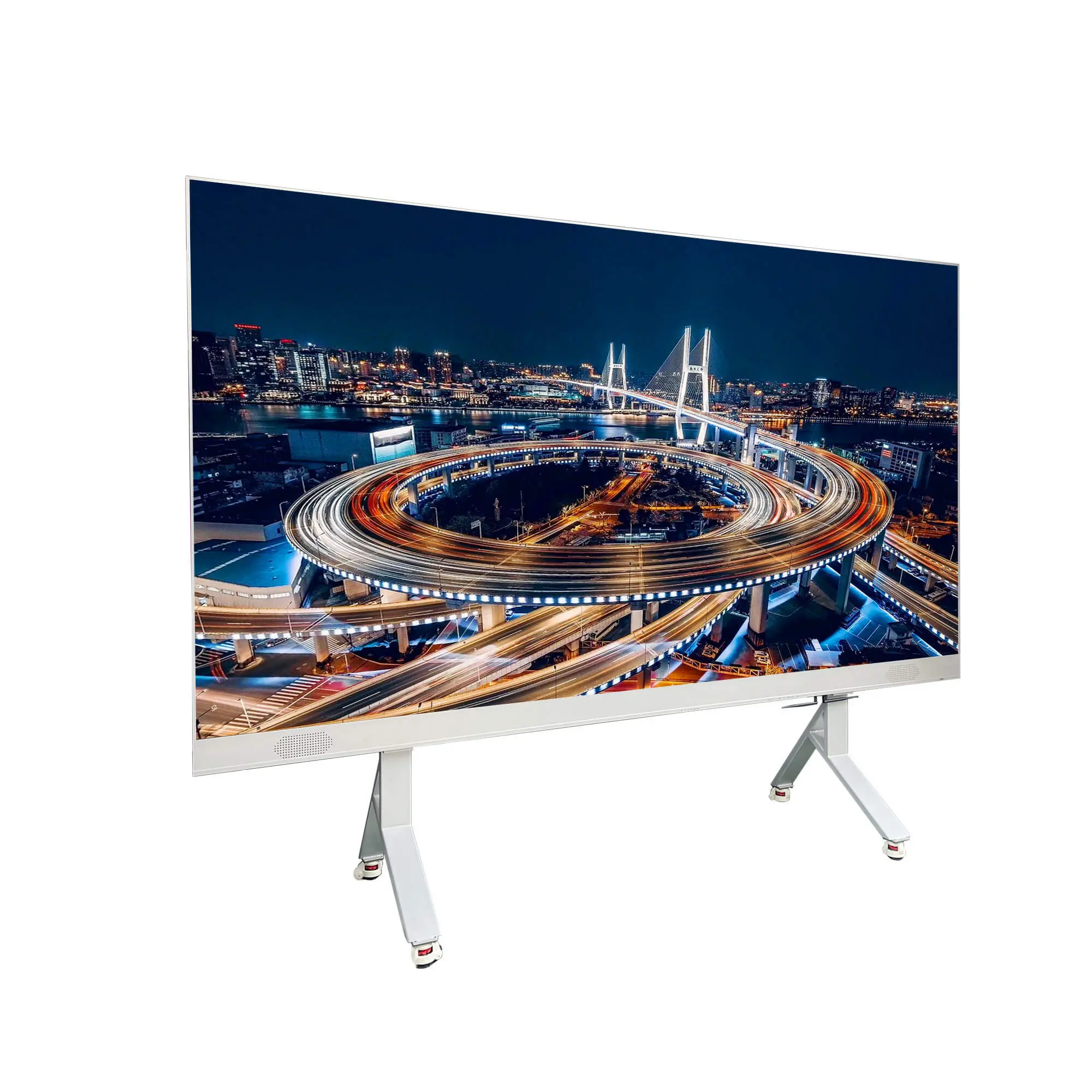

AI Elite Series – All in one LED display
AI Elite Series for fixed installation which is the perfect all in one LED display solution for conferencing with standard large size, standard 16:9 aspect ratio, it’s not only suitable to work in business meetup and also use in audio and video entertainment.
All in one design supports to competible working with multi external equipments, quickly switch between HDMI, wireless and another signal sources, one botton push to display, turn on/off, urser-friendly interface and remote control, as like using a TV Set.
AI Elite supports to pre-loaded 4 scene modes, freely smart switch for different meeting applications.
Enhanced image quality technology makes AI Elite Screen looks amazing, provides a fabulous viewing experience, more realistic and smooth.
| Model no. | AI 108 | AI 136 | AI163 |
| LED Model Pixel Pitch | 1.25 | 1.5625 | 1.875 |
| LED Configuration | SMD1010 | SMD1212 | SMD1515 |
| Screen Size (w x h) inch | 94.49 x 53.15 | 118.11 x 66.44 | 141.73 x 79.72 |
| Resolution | 1920*1080P | 1920*1080P | 1920*1080P |
| Viewing Area | 2400mm x 1350mm | 3000mm x 1687.5mm | 3600mm x 2025mm |
| AI Elite Dimension (mm) | 2420mm x 1465mm x 40mm (without base) | 3020mm x 1802.5mm x 40mm (without base) | 3620mm x 2140mm x 40mm (without base) |
| Brightness | 100-800 cm/m2 (256 levels adjustable) | ||
| Contrast | 6000:1 | ||
| Color Processing (Bit) | 14-18 bit | ||
| Refresh Rate | 23840Hz | ||
| Viewing Angle | 160°(H) / 160°(V) | ||
| Response Time | < 0.5 ms (Type) | ||
| Operating System | Windows / Mac OS / iOS / Android | ||
| Main Configuration | Main frequency 1.8G / Quadcore CPU / RAM LPDDR4-2GB / 32GB | ||
| Video Interface | HDMI 1.3 x1, USB 3.0 x1, USB 2.0 x3 | ||
| Audio Interface | External Audio x1 interface | ||
| Control Interface | RJ45 x1, USB-B x1, Bluetooth, WiFi, infrared remote control | ||
| Input Voltage | 100-240V~50/60Hz | ||
| Power Consumption Per Sq.m | <170W (average) / <500W (Max) | ||

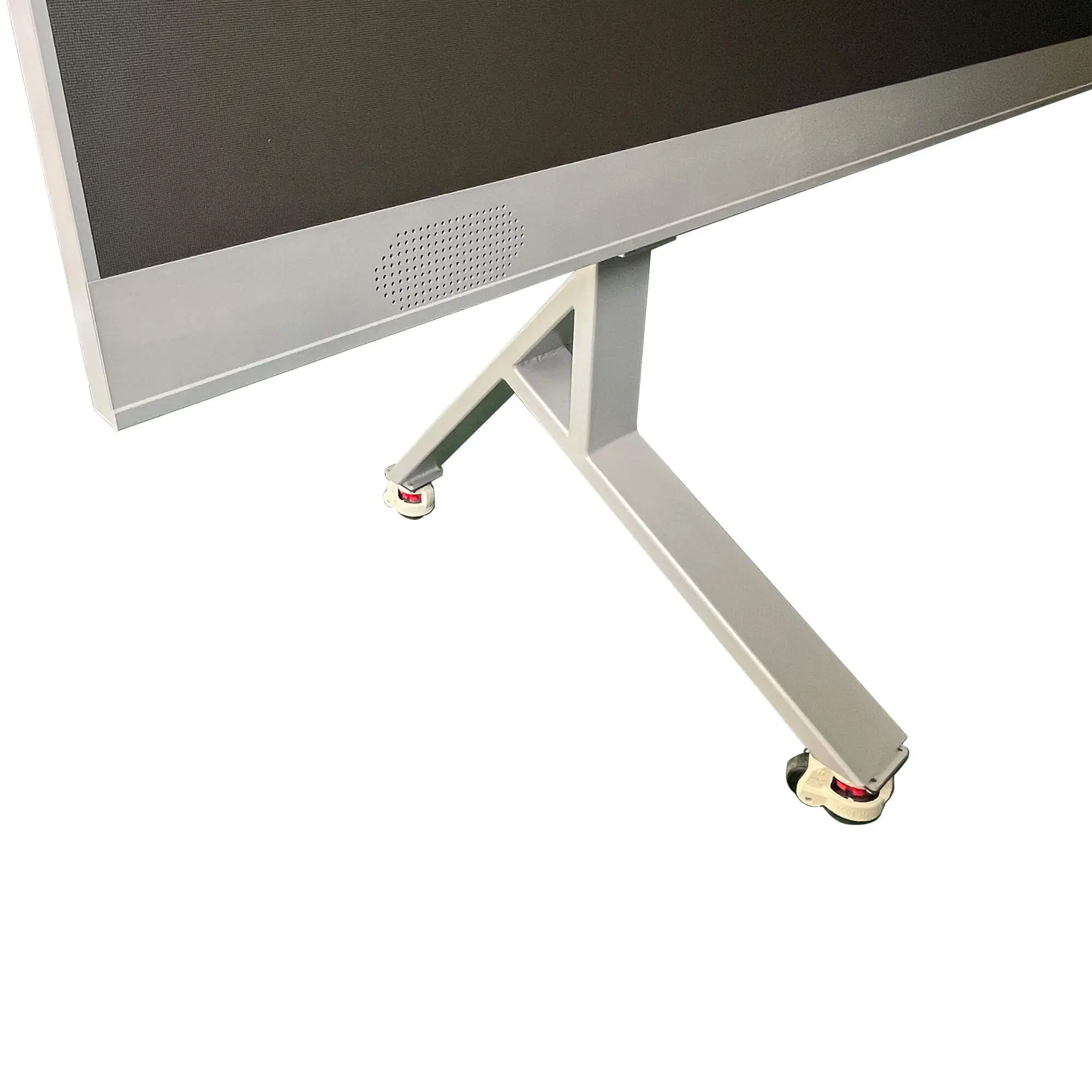

| Installation Method | Wall-mounted / Mobile Base | ||
| Storage Temperature | -20°C ~ 60°C | ||
| Operational Temperature | -10°C ~ 40°C | ||
| Humidity | 10% ~ 90% RH | ||
| Accessories | Remote Controller, Built-in Speaker, Moving Bracket, HDMI Cable, Service Tools, Screen Transmitter | ||
