Digital Poster Series
| Model no. | DP 171 | DP 211 | DP 251 |
| Pixel Pitch | 1.75 mm | 2.1875 mm | 2.5926 mm |
| LED Configuration | SMD1010 | SMD1515 | SMD2020 |
| Module Size (W x H) | 3280 x 210mm | 3280 x 210mm | 3280 x 210mm |
| Module Resolution | 160 x 120 | 128 x 96 | 108 x 81 |
| Full Screen Pixels (W x H) | 320 x 1080 | 256 x 864 | 216 x 729 |
| Model Arrangement (H x W) | 9 x 2 | 9 x 2 | 9 x 2 |
| Display Size | 1890 x 560 mm | 1890 x 560 mm | 1890 x 560 mm |

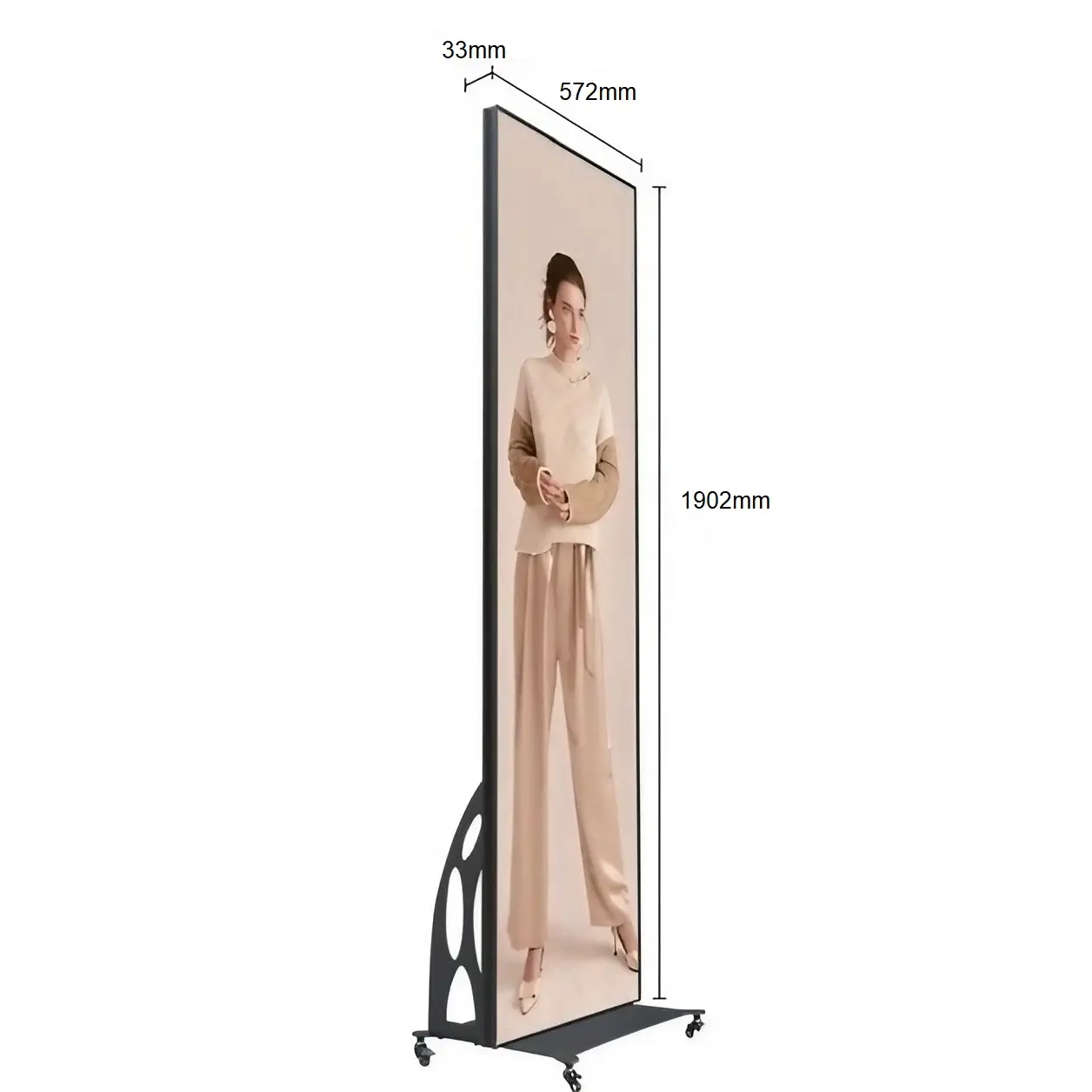

| Frame Size (H x W x T) | 1902 x 572 x 33 mm | 1902 x 572 x 33 mm | 1902 x 572 x 33 mm |
| Refresh Rate | 3840Hz | ||
| Brightness (cd/m2) | 1000 | ||
| Scan Mode | 1/40 | 1/32 | 1/27 |
| Max Power Consumption | 500 W/pcs | 450 W/pcs | 450 W/pcs |
| Average Power Consumption | 150 W/pcs | 120 W/pcs | 120 W/pcs |
| Input Voltage | AC 110V – 240V, 50 / 60Hz | ||
| Power Supply | 5V 60A 2 pcs | ||
| Operating Temperature | -10°~40°C | ||
| Panel Weight | 27 Kg | ||
| Number of Display Face | 1 | ||
| IP Level | IP 34 | ||
| Maintenance Access | Front Internals | ||
| Packing Method | Flight Case | ||
