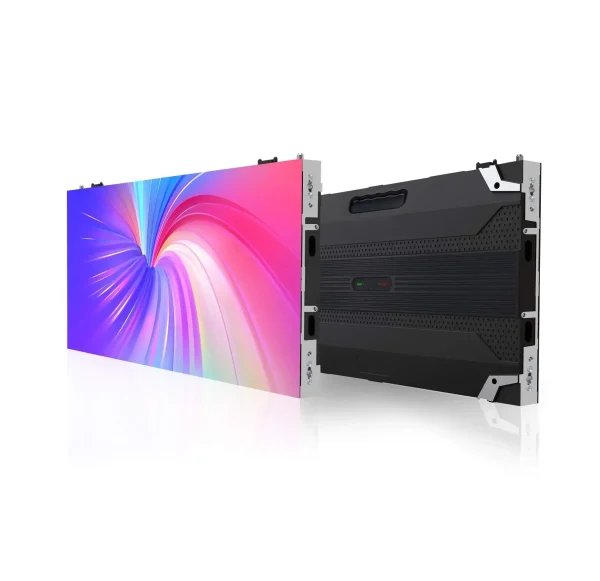

Indoor LED Screen-IU Series
Key Feature
Pixel Pitch: 0.9mm/1.2mm/1.5mm/1.8mm
Brightness: 600nit

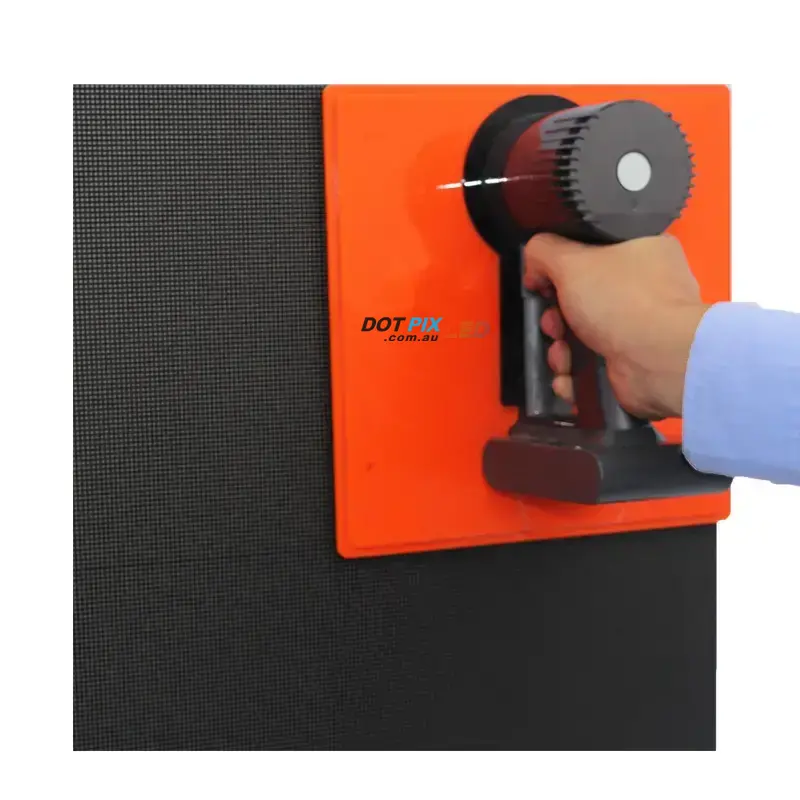

Front Service Totally
Seemless Connection
GOB Protection

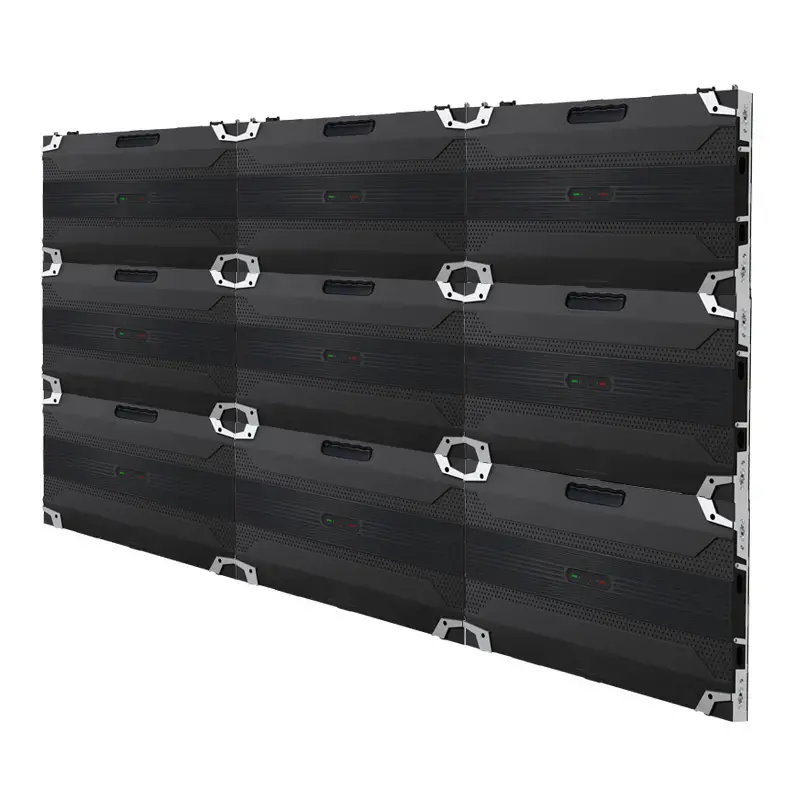

Wall-mounting
| ITEMS | Specification | |||
| Physical Parameters |
LED Configuration | SMD1010 | SMD1010 | SMD1515 |
| Pixel Pitch（ mm） | 1.25 | 1.562 | 1.875 | |
| Module Resolution(dots) | 240×135 | 192×108 | 160×90 | |
| Panel Resolution(dots) | 480×270 | 384×216 | 320×180 | |
| Driving Mode(Scan) | 27S | 27S | 30S | |
| Pixel Density（ dots /m²） | 640000 | 409600 | 284444 | |
| Module Size（W x H x D）/( mm) | 300×168.75×15 | 300×168.75×15 | 300×168.75×15 | |
| Panel Dimension（W x H x D）/( mm) | 600×337.5×40 | 600×337.5×40 | 600×337.5×40 | |
| GOB/COB/SMD | Support | Support | Support | |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | |
| Panel Module Composition(W xH) | 2×2 | 2×2 | 2×2 | |
| Panel Weight(Per/ kg) | 6.3 | 6.3 | 6.3 | |
| Module Weight( Per/kg) | 0.45 | 0.45 | 0.45 | |
| Optical Processing | Minimum Viewing Distance | ≥1.5m | ≥1.9m | ≥2.3m |
| Contrast Ratio | 1000 ： 1 | 1000 ： 1 | 1000 ： 1 | |
| Color processing (Bit) | 13bit to 16bit | 13bit to 16bit | 13bit to 16bit | |
| Grey Level | 16384 | 16384 | 16384 | |
| Refresh Rate（Hz） | 3840hz | 3840hz | 3840hz | |
| Brightness（ nit） | 700 | 700 | 700 | |
| Viewing Angle（ H/V） | 160°/160° | 160°/160° | 160°/160° | |
| Electrical Parameters |
Input Voltage（V） | AC 110V-220V | AC 110V-220V | AC 110V-220V |
| Input Power Frequency（Hz） | 50/60 | 50/60 | 50/60 | |
| Max Power（W/m²） | 600 | 600 | 600 | |
| Average Power（ W/m²） | 200 | 200 | 200 | |
| Operating Environment | Storage Temperature (℃） | From -10 to 40 | From -10 to + 40 | From -10 to + 40 |
| Operating Temperature（ ℃） | From-20 to 50 | From -20 to + 65 | From -20 to + 65 | |
| Storage Humidity（RH） | 10%~90% | 10%~90% | 10%~90% | |
| Operating Humidity（RH） | 10%~90% | 10%~90% | 10%~90% | |
| IP Rating | IP3X/IP31 | IP3X/IP31 | IP3X/IP31 | |
| Lifetime（hrs） | 100000 | 100000 | 100000 | |
| Usage Environment | Indoor Fixed Installation | Indoor Fixed Installation | Indoor Fixed Installation | |
| Panel Maintenance Method | Front Maintenance | Front Maintenance | Front Maintenance | |
