IN Series – Indoor Digital Wallpaper Displays

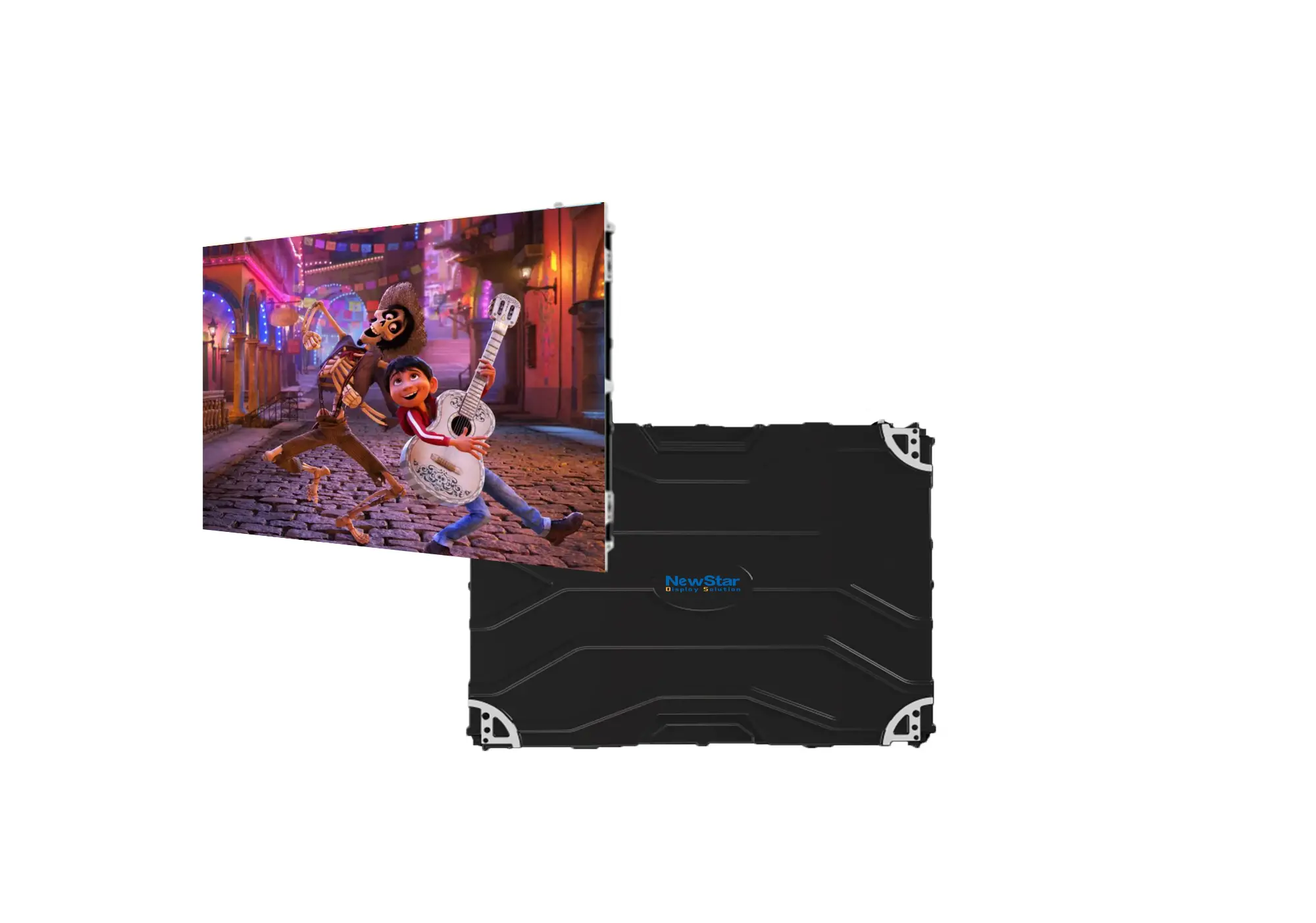

Indoor Digital Wallpaper Display TN Series

TN SERIES PRODUCT DESCRIPTION

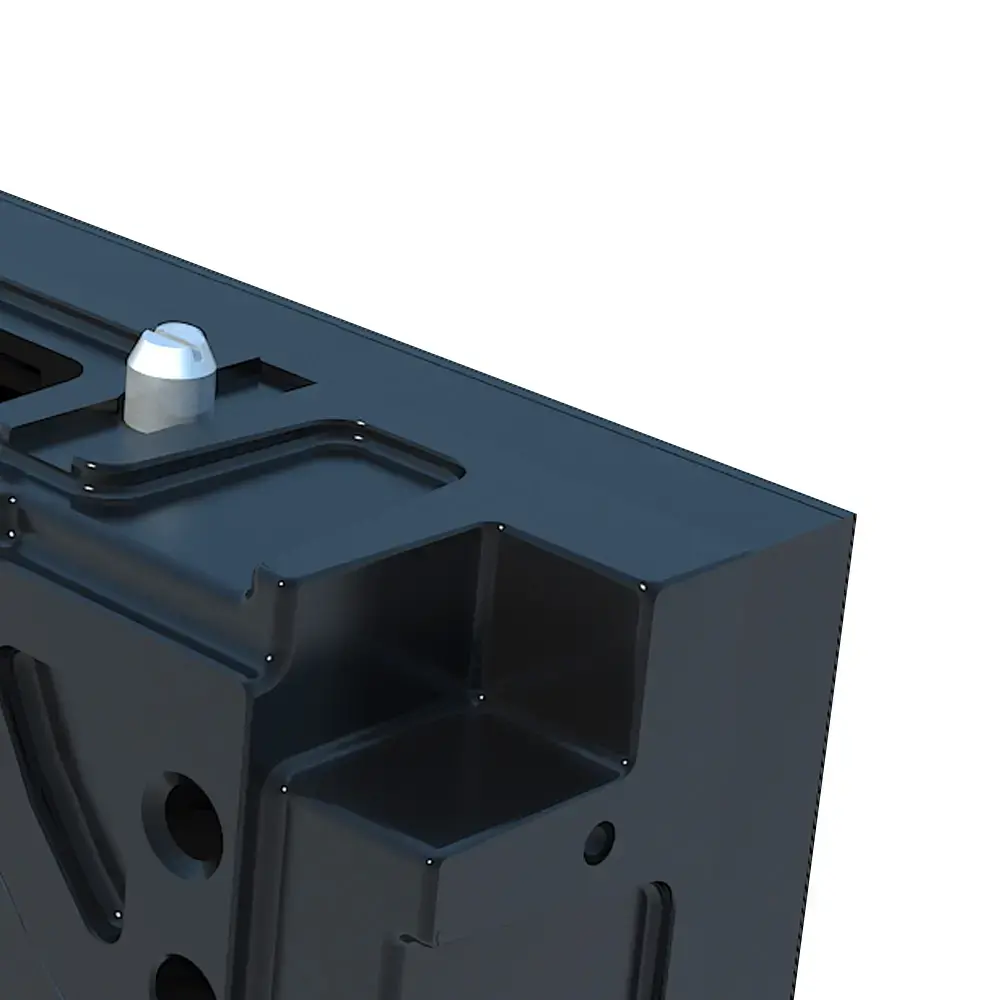

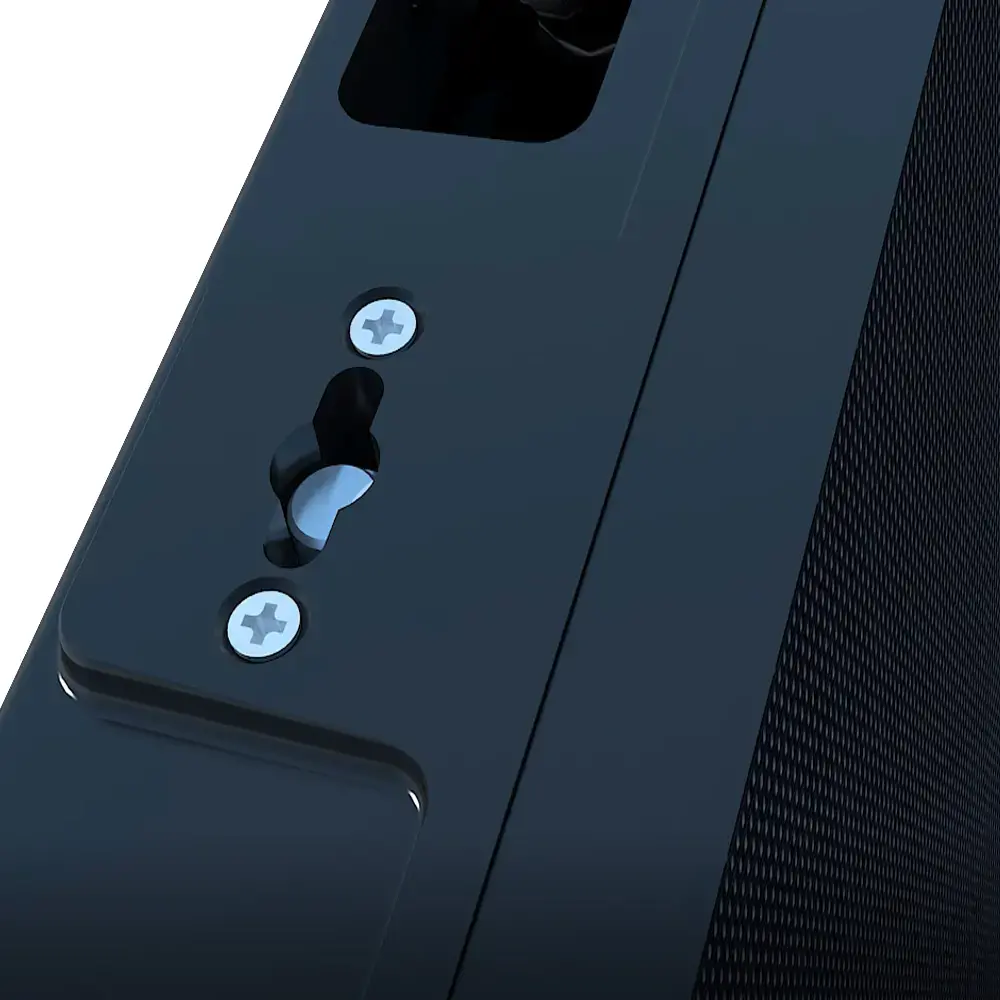

Front Service Indoor Fixed

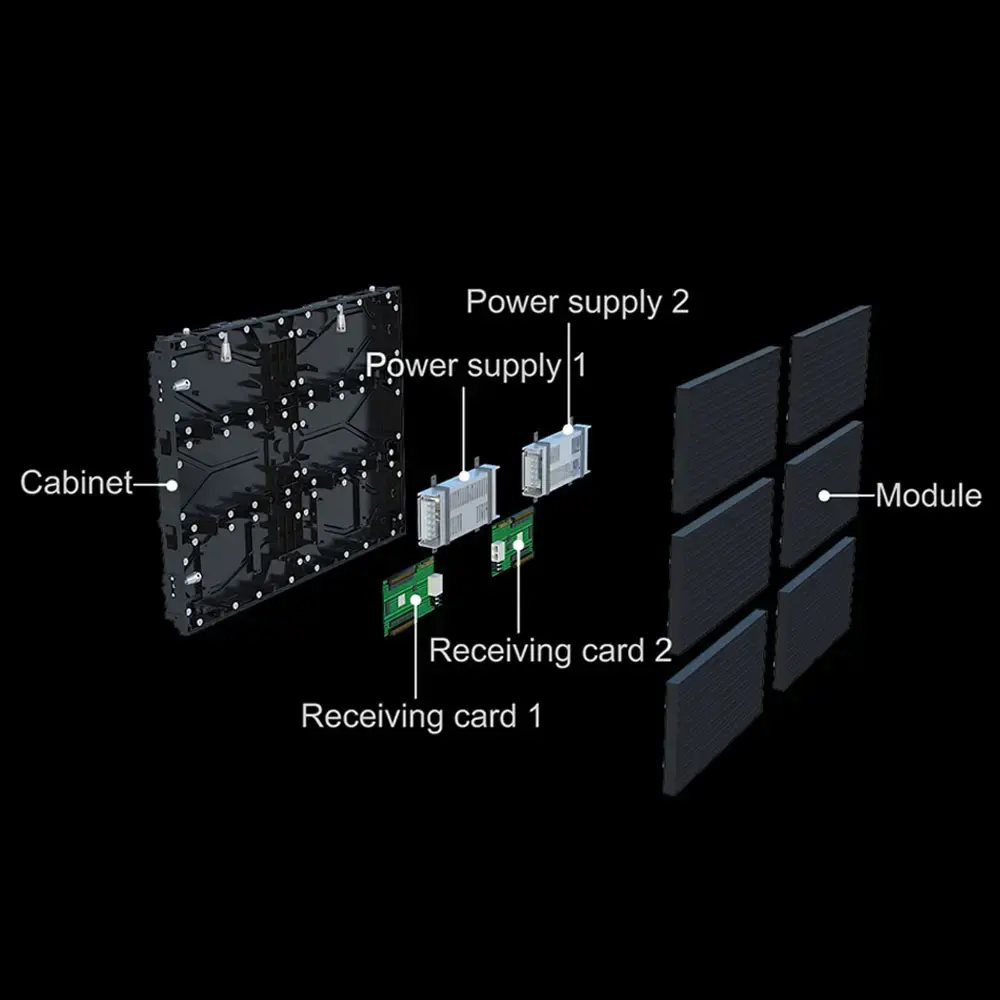

Perfect Seemless connectionDual Backup for signals

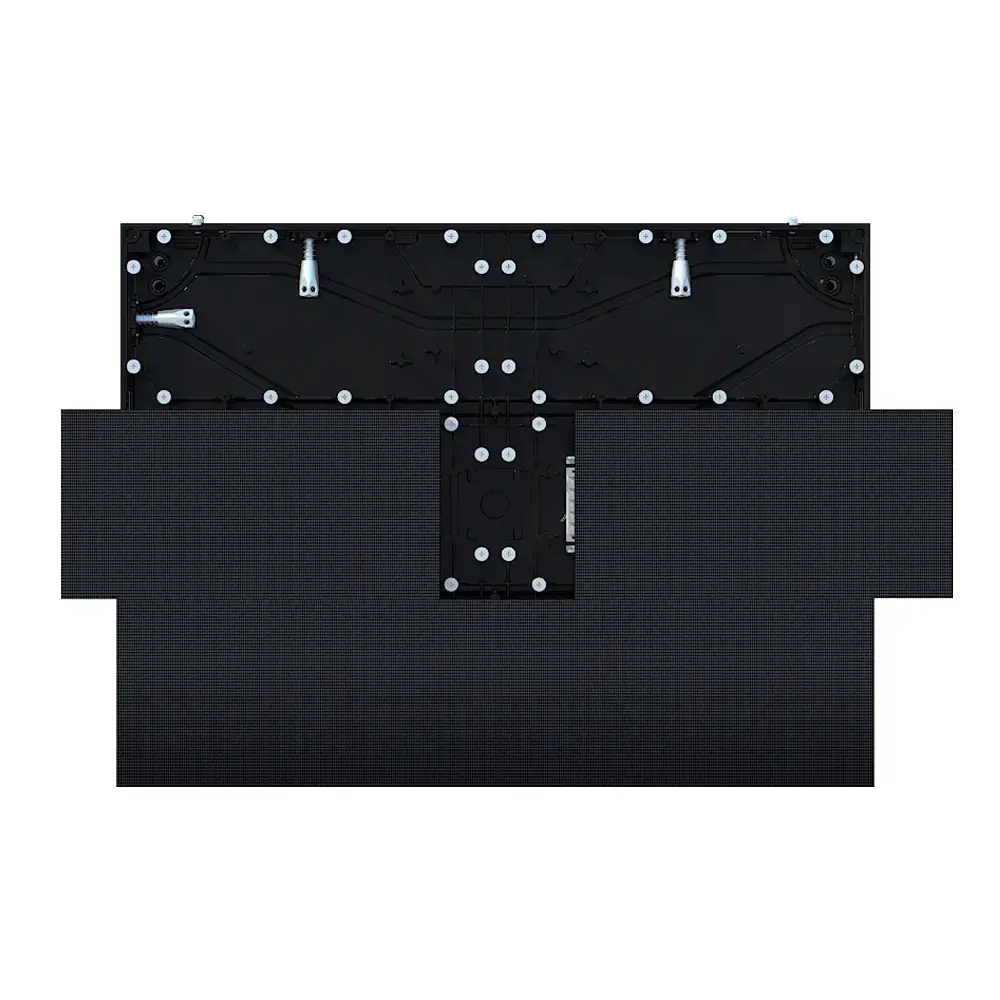

front service

High Gray Scale

High Refresh Rate

Indoor Fixed Installation

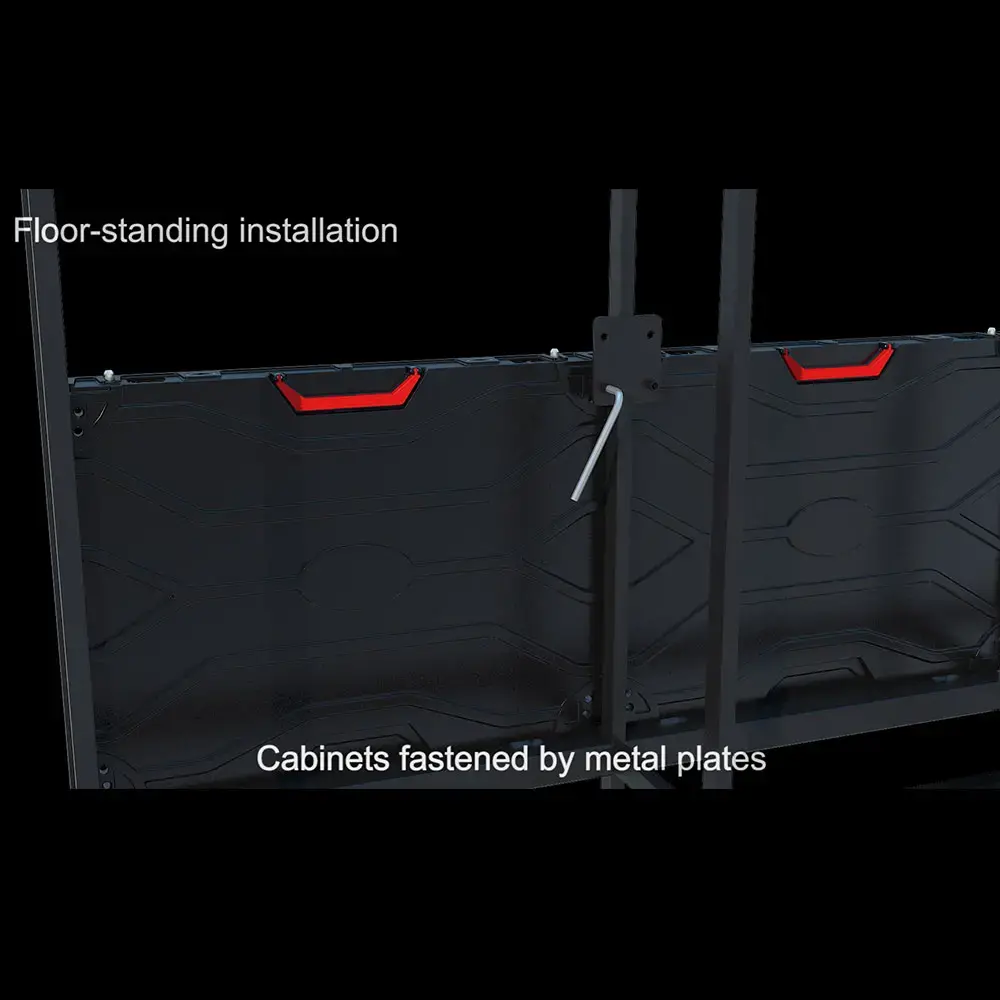

Floor standing installation

Indoor LED Testing

Project Applications

FN Series LED Cases

Model no. ITN181 ITN201 ITN251 ITN301
LED Configuration SMD1515 SMD1515 SMD2020 SMD2020
Pixel Pitch (mm) 1.86mm 2mm 2.5mm 3.076mm
Pixel Density (dots/m²) 288906 250000 160000 105688
Module Resolution (dots) 172×86 160×80 128×64 104×52

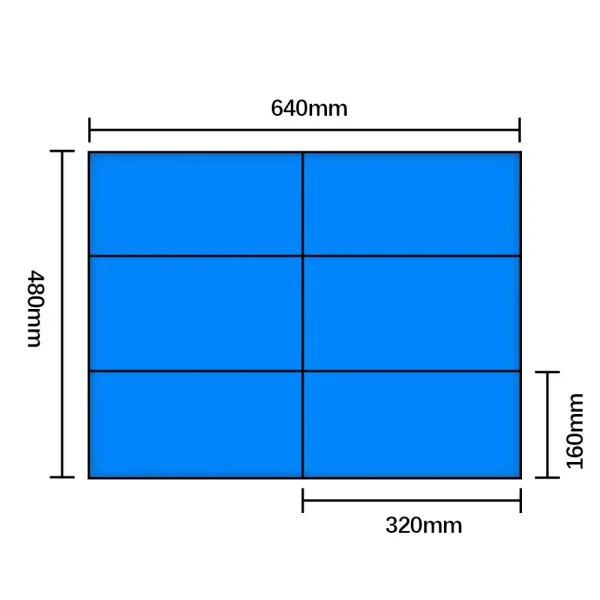

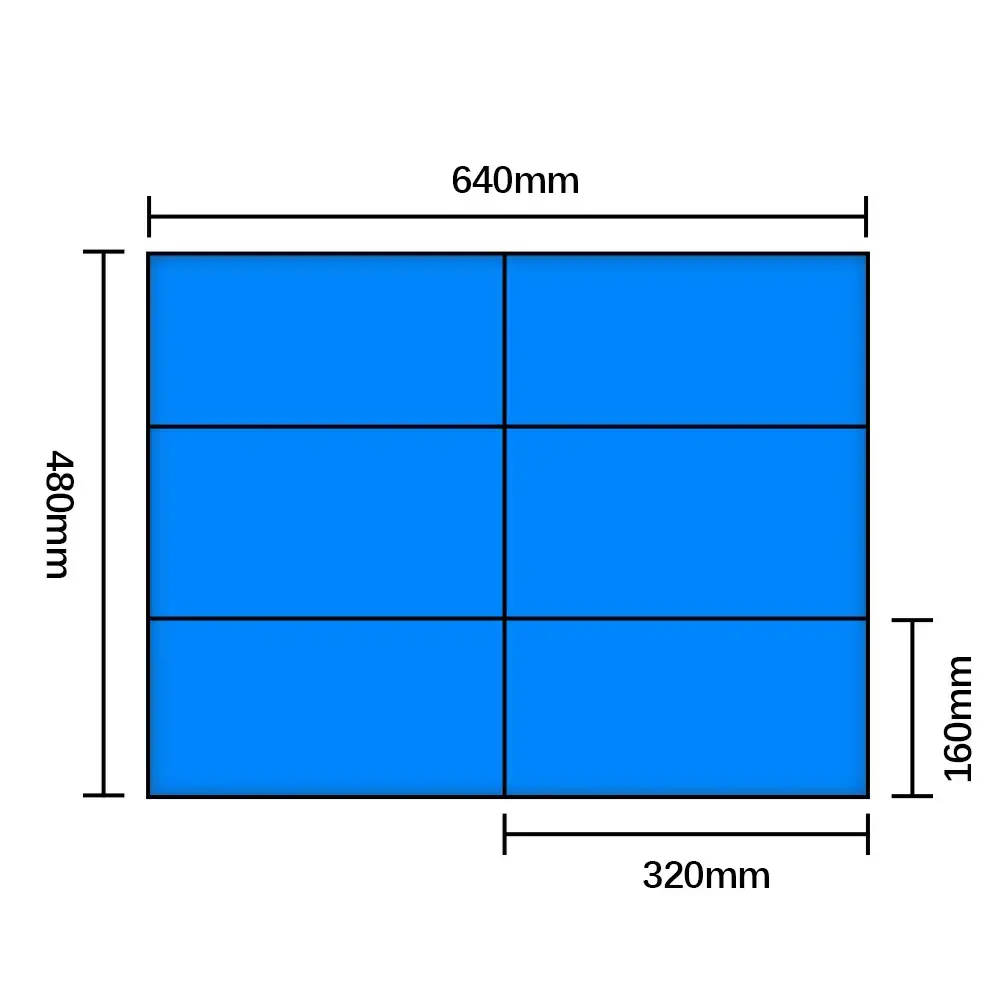

Module Size (W x H x D) / (mm) 320x160x15mm 320x160x15mm 320x160x15mm 320x160x15mm
Panel Resolution (dots) 88752 76800 49152 32448
Panel Resolution (H x V) 344×258 320×240 256×192 208×156
Panel Dimension (W x H x D) / (mm) 640x480x63mm 640x480x63mm 640x480x63mm 640x480x63mm
Panel Dimension  (Inch) 25.20” x 19.05” x 2.48” 25.20” x 19.05” x 2.48” 25.20” x 19.05” x 2.48” 19.05” x 19.05” x 2.48”
Panel Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Panel Weight (Per/ kg) 6.8Kg 6.8Kg 6.8Kg 6.8Kg
Grey Level 65536 65536 65536 65536
Refresh Rate (Hz) ≥3840 ≥3840 ≥1920 ≥1920
Driving Mode (scan) 1/43 1/32 1/32 1/26
Max Brightness (nits) ≥600nit ≥600nit ≥1000nit ≥1200nit
Viewing Angle Horizontal 160 160 160 160
Viewing Angle Vertical 140 140 140 160
Max Power (W/m²) ≤510 ≤453 ≤457 ≤600
Average Power (W/m²) ≤168 ≤151 ≤152 ≤200
Certification CE,RoHS,ETL, UL
