Indoor Media – IU Series (Digital Wallpaper)
For product pricing, customization, or other inquiries:
Share to:
Fine Pitch High Definition LED Video Wall
Pixel Pitch 0.9/1.2/1.5 /1.8mm
Dptpix’s IU Series is the ultra high definition fine pitch led display solution for a wide range of indoor LED video wall applications of various commercial activities. This is the best choice to using indoor fixed led panel advertising to good effect of your product, service, so much as enhance your brand through by NewStar’s digital LED video wall solution, all in one designs makes to easily install it on everywhere in public, it will perfectly to display your commercial activities, as well as impact to make your brand stand out with more value added and ROI increasing.
KEY FEATURES
MUTIPLE INSTALLATIONS
APPLICATIONS
| Model no. | IU 121 | IU 151 | IU 181 |
| Pixel Pitch | 1.25 | 1.5625 | 1.875 |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 |
| Module Resolution | 240 x 135 pixels | 192 x 108 pixels | 160 x 90 pixels |
| Module Size (W x H x D) | 300 x 168.75 x 15mm | 300 x 168.75 x 15mm | 300 x 168.5 x 15mm |
| Module Weight | 0.45 Kg | 0.45 Kg | 0.45 Kg |
| Panel Resolution (dots) | 480 x 270 | 384 x 216 | 320 x 180 |
| Panel Dimension (W x H x D) | 600 x 337.5 x 45mm | 600 x 337.5 x 45mm | 600 x 337.5 x 45mm |
| Panel Module Composition (W x H) | 2 x 2 | 2 x 2 | 2 x 2 |
| Panel Weight | 6.3 Kg | 6.3 Kg | 6.3 Kg |
| Driving Mode (Scan) | 27S | 27S | 30S |
| Pixel Density (pixels/m2) | 640000 | 409600 | 284444 |
| Minimum Viewing Distance | ≥ 1.5m | ≥ 1.9m | ≥ 2.3m |
| Brightness | 100-800 cd/m2 (256 levels adjustable) | ||
| Contrast | 6000:1 | ||
| Color Processing (Bit) | 14 – 18 bits | ||
| Grey Level | ≥ 16384 | ||
| Refresh Rate | ≥ 3840Hz | ||
| Viewing Angle | 160° (H) / 160° (V) | ||
| Input Voltage | 100-240V ~50/60Hz | ||
| Power Consumption (Max) | 500 W/m2 | ||
| Power Consumption (Avg) | 170 W/m2 | ||
| Panel Material | Die Casting Aluminium | ||
| Panel Weight | 28~30 Kg/panel | ||
| Operational Temp / Humidity | -20°-60°C, 10-90% RH/-4°-122°F, 10-90% RH | ||
| IP Rating | IP40 / IP31 | ||
| Lifetime | 100000 hrs | ||
| Usage Environment | Indoor Fixed Installation | ||

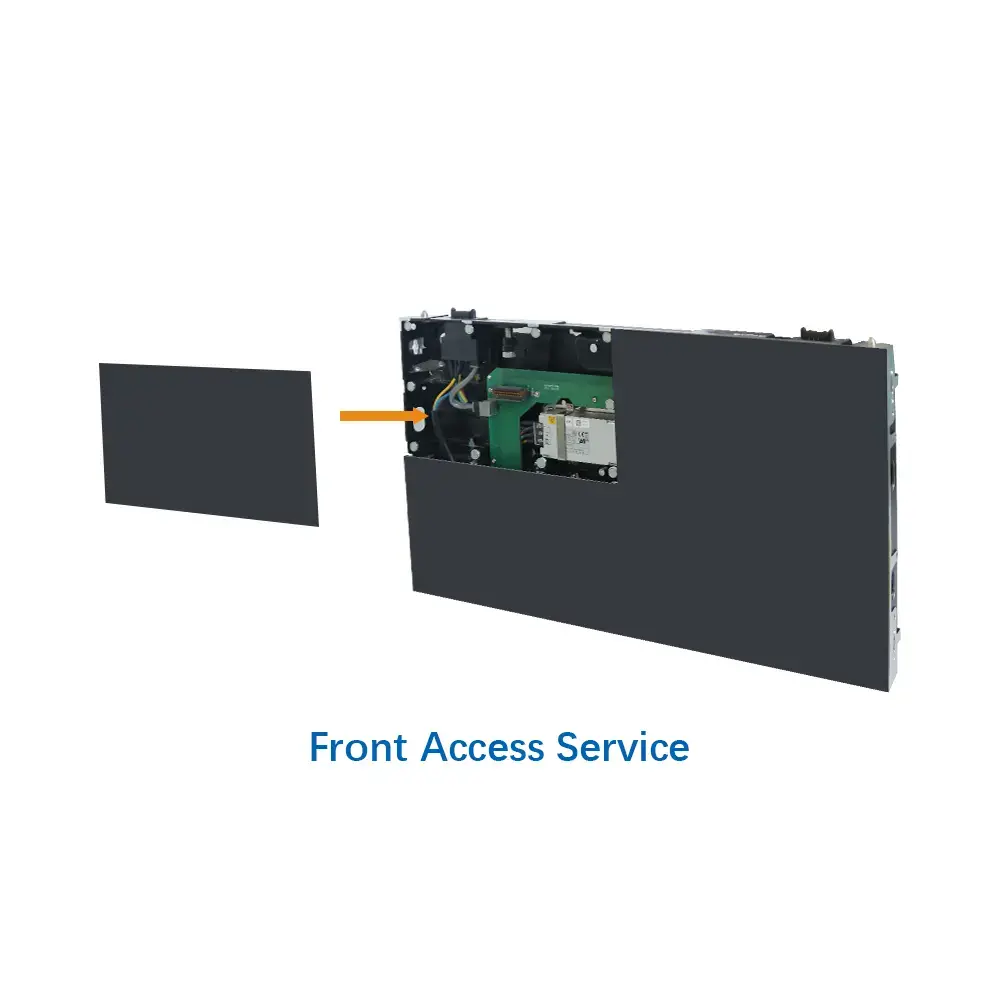

| Panel Maintenance Method | Front Maintenance | ||
