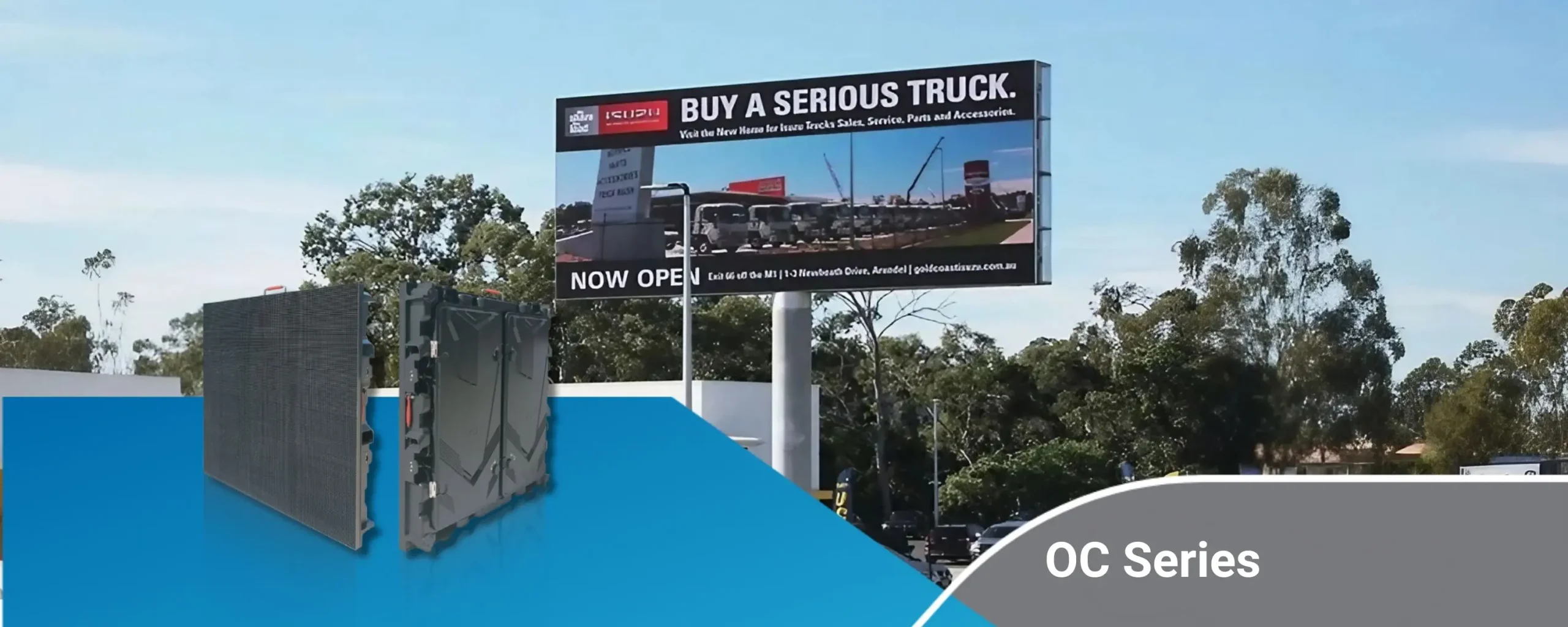

Outdoor Media Billboard – OC Series
For product pricing, customization, or other inquiries:
Share to:
OF Small Pitch Series Outdoor LED Screen Display
Pixel Pitch P4 and P5 belongs to DoxPix outdoor fixed series, new developed to be used in more various commercial scenes, high fresh rate and high brightness for more options.

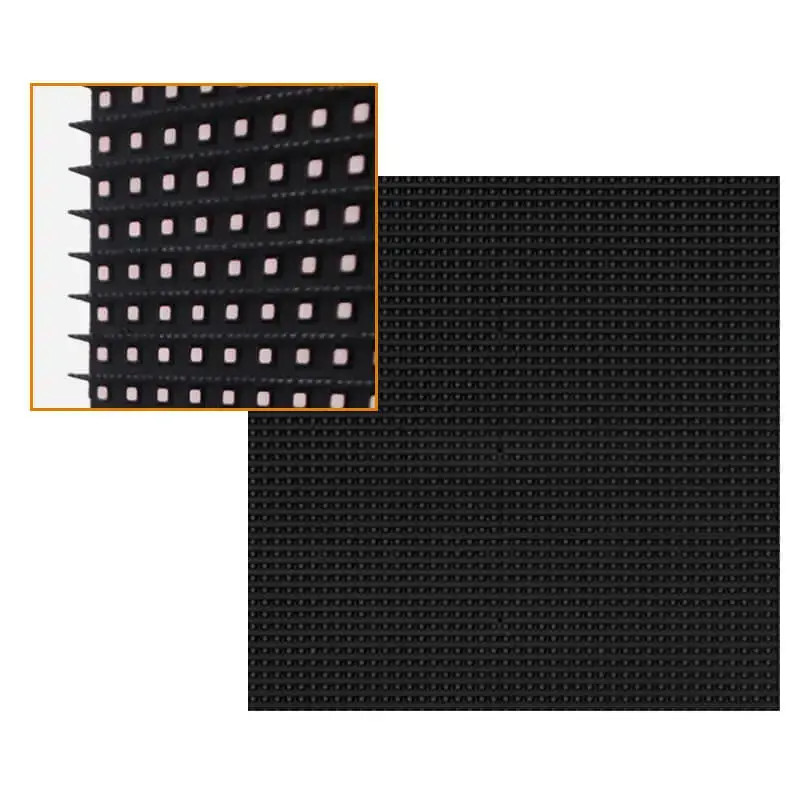

Those are specially designed higher mask cap instead of normal type for better visual experience, like smoother color transition, and high contrast ratio in direct sunlight.

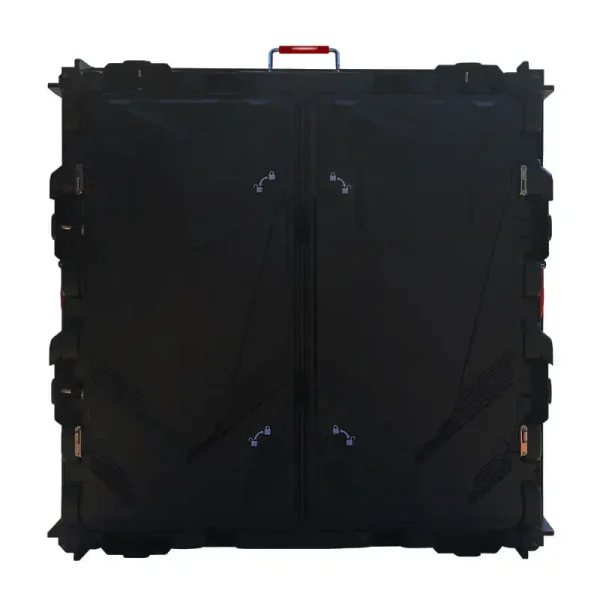

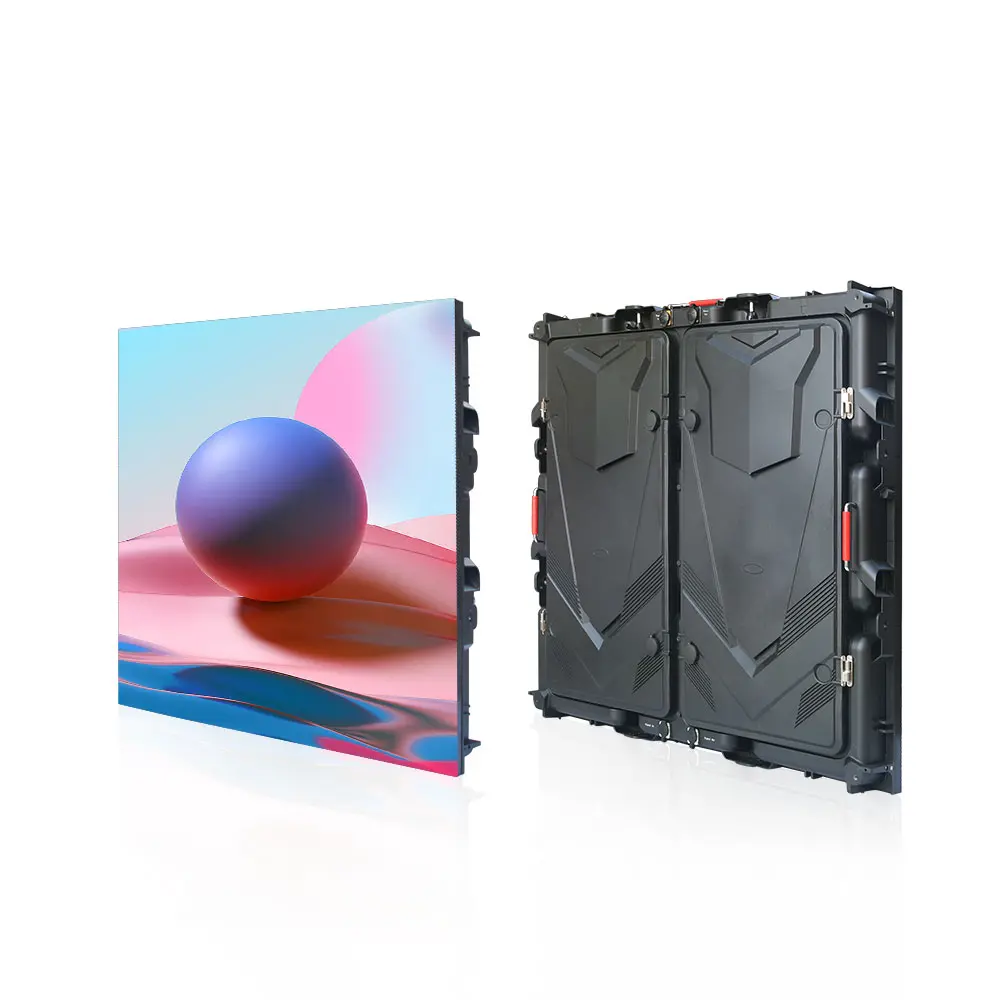

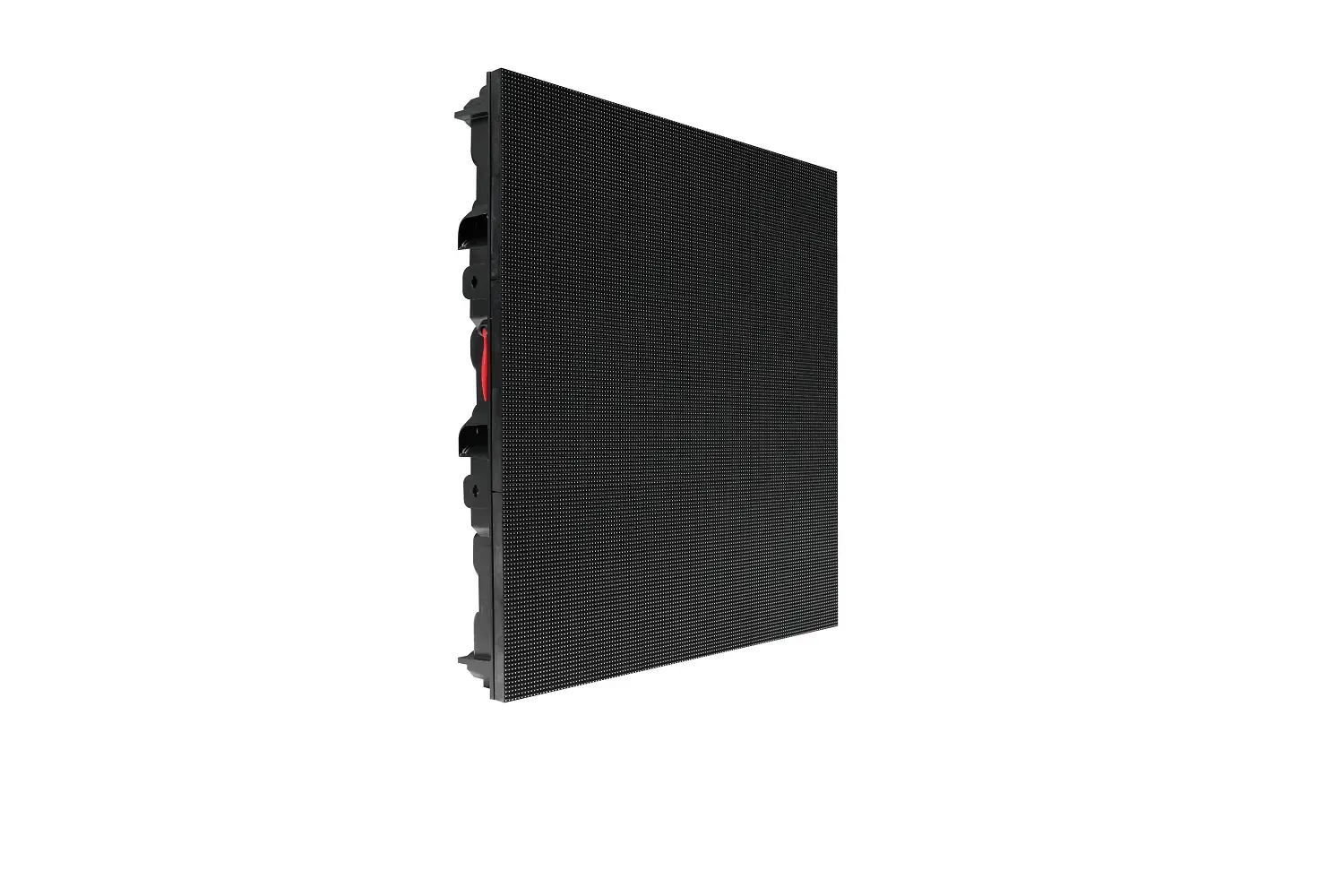

This led panel size is standard 960 x 960mm, die casting aluminum material, the led module size is 320 x 320mm.

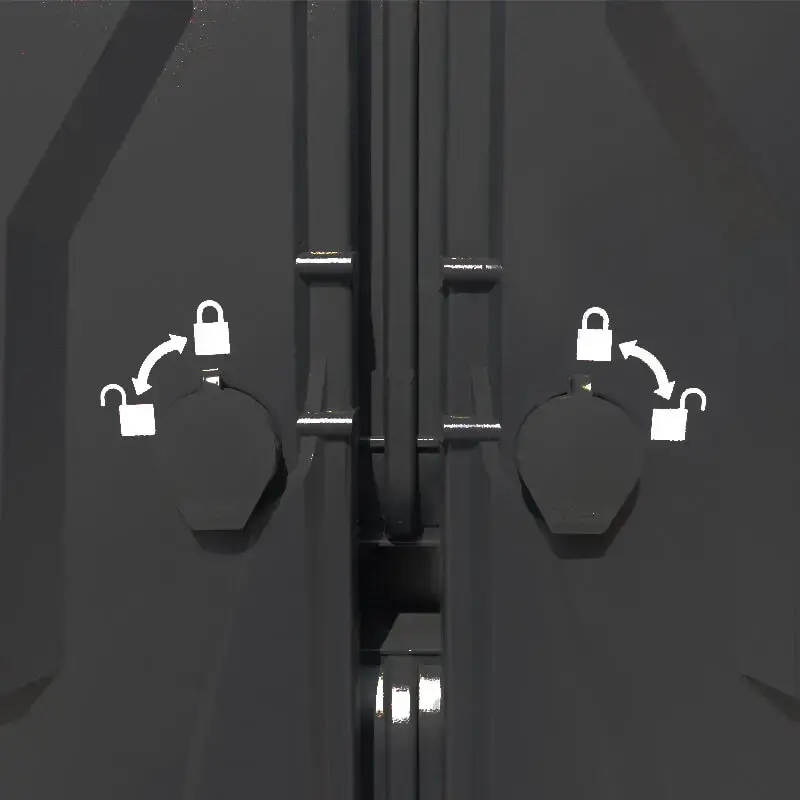

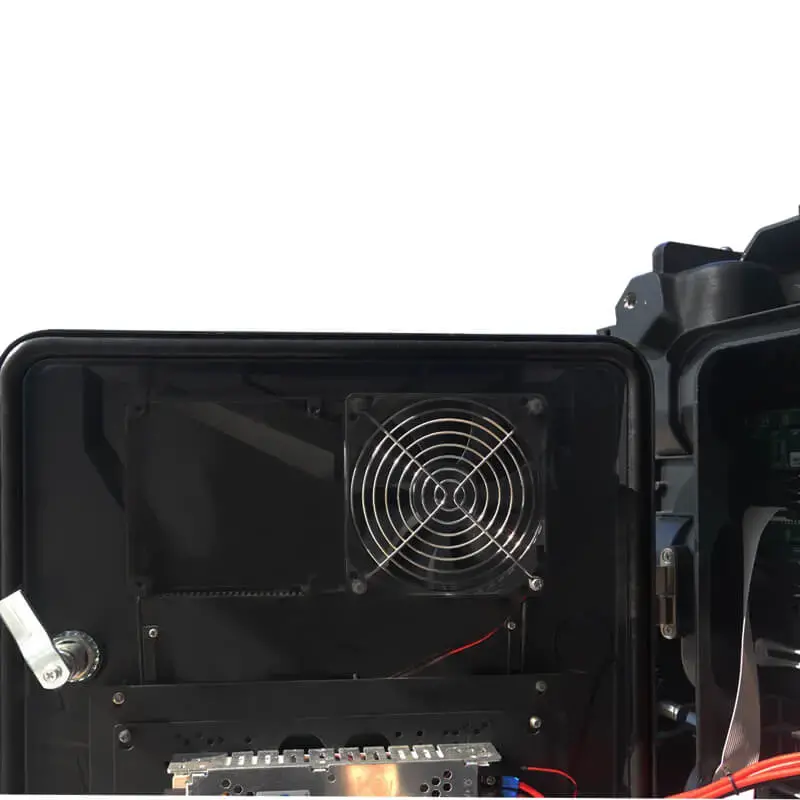

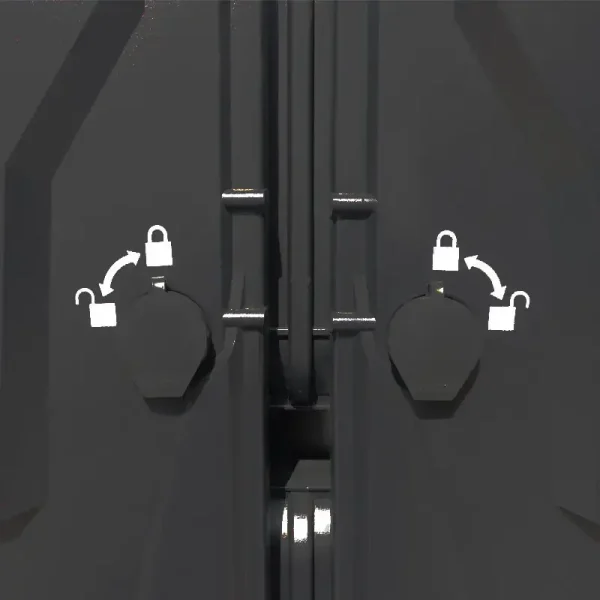

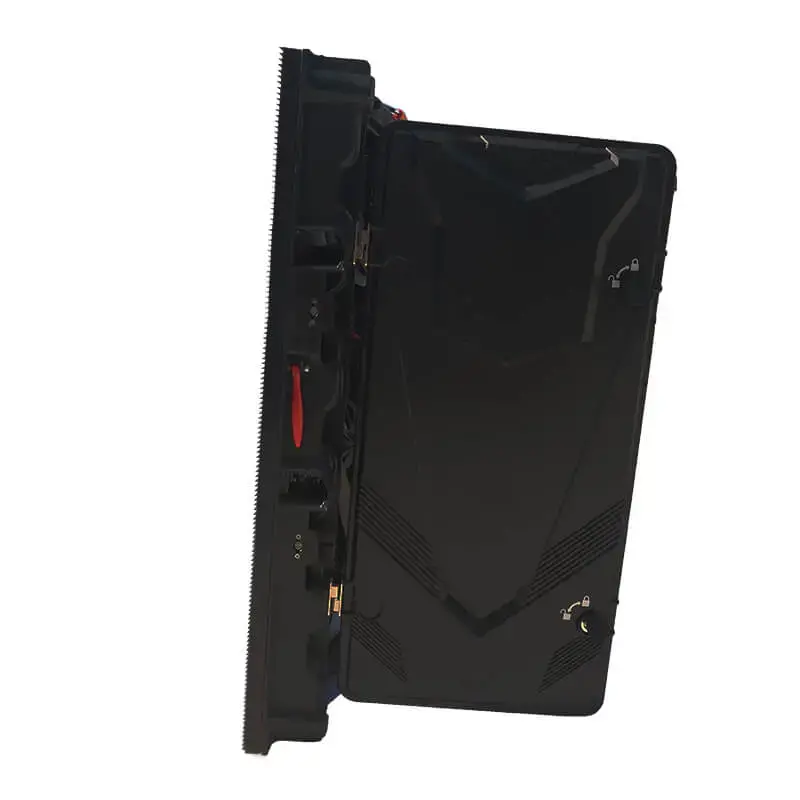

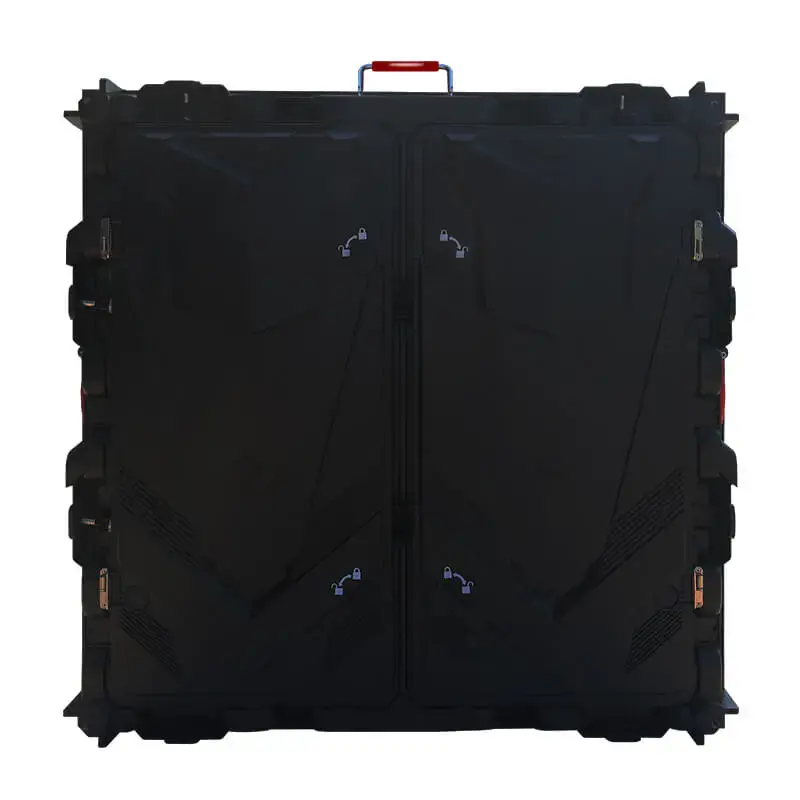

This type of LED panel are desiged can be not only accessed rear door, while at the same time all components are able to removable from the front service of led display.
Step 1: Use “T” Wrench and insert one hole of the module, then rotate it anti-clockwise direction to unlock.
Step 2: Repeat step 1 on the other hole to release the module separate from panel easily.
Stepe 3: Discounnect power and data cable.
To find out more about outdoor led display models, freely download our specifications or contact us right now.
| Pixel Pitch | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Module Sie (W x H) | 320mm x 320mm | 320mm x 320mm | 320mm x 320mm | 320mm x 320mm | 320mm x 320mm |
| Module Resolution | 80 x 80 pixels | 64 x 64 pixels | 48 x 48 pixels | 40 x 40 pixels | 32 x 32 pixels |
| Panel Dimension | 960 x 960 x 135 mm | ||||
| Panel Dimension (Inch) | 37.79″ x 37.79″ x 5.31″ | ||||
| Panel Resolution (H x V) | 240 x 240 | 192 x 192 | 144 x 144 | 120 x 120 | 96 x 96 |
| Pixel Density (pixels/m2) | 62500 | 40000 | 22500 | 15625 | 10000 |
| Drive Mode | 1/10 | 1/8 | 1/6 | 1/4 | 1/2 |
| Brightness (nits/m2) | 5500 ~ 8000 nits | 5500 ~ 8000 nits | 5500 ~ 9500 nits | 6000 ~ 9500 nits | 6500 ~ 10000 nits |
| Color Processing (Bit) | 14-18 bit | ||||
| Color Temperature | 6500 – 9300K | ||||
| Grey Level | ≥ 16384 | ||||
| Refresh Rate | ≥ 3840 Hz | ||||
| Viewing Angle (H / V) | High Mask 140/65 or Normal Mask 140/40 | ||||
| Input Voltage | AC 110V – 240V | ||||
| Input Power Frequency | 50 / 60 Hz | ||||
| Power Consumption (Avg) | ≤ 274W/m2 | ||||
| Power Consumption (Max) | ≤ 830W/m2 | ||||
| Frame Material | Die Cast Aluminium | ||||
| Weight Per Panel | 31 KG | ||||
| Operational Temp / Humidity | -20°-60°C, 10-90% RH/-4°-122°F, 10-90% RH | ||||
| IP Rating | Outdoor IP65 Front / Rear | ||||
| Maintenance Method | Front & Rear | ||||
