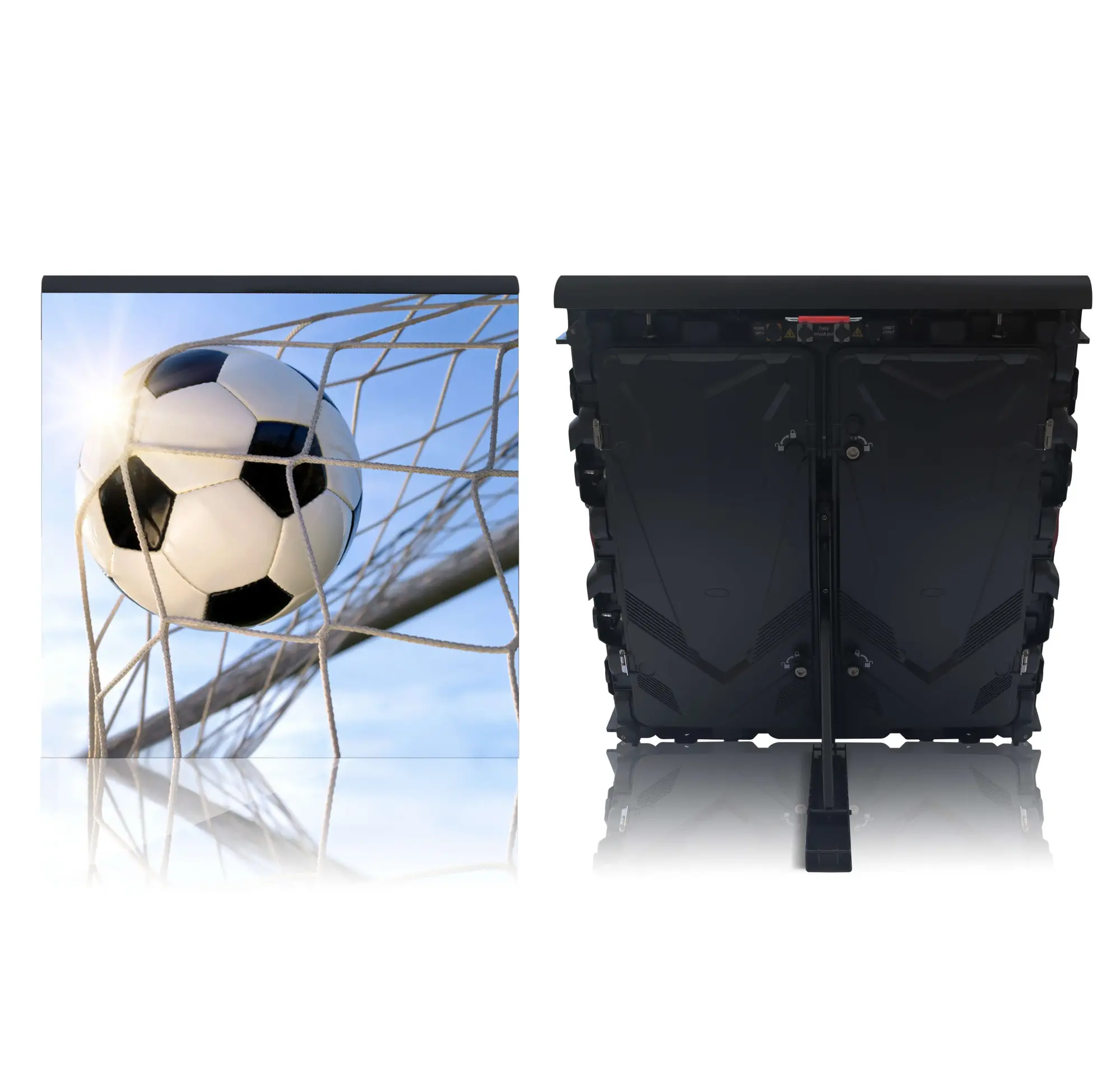

OS Series Perimeter Stadium LED Display
Dotpix OS Series is our new generation sports perimeter solution used for permanent installation stadium. It’s totally designed with soft mask and rubber pillow cases which is enhanced the protection not only to screens, and also can protect athletes and audiences from injury.
Key Features
OS Series Product Description

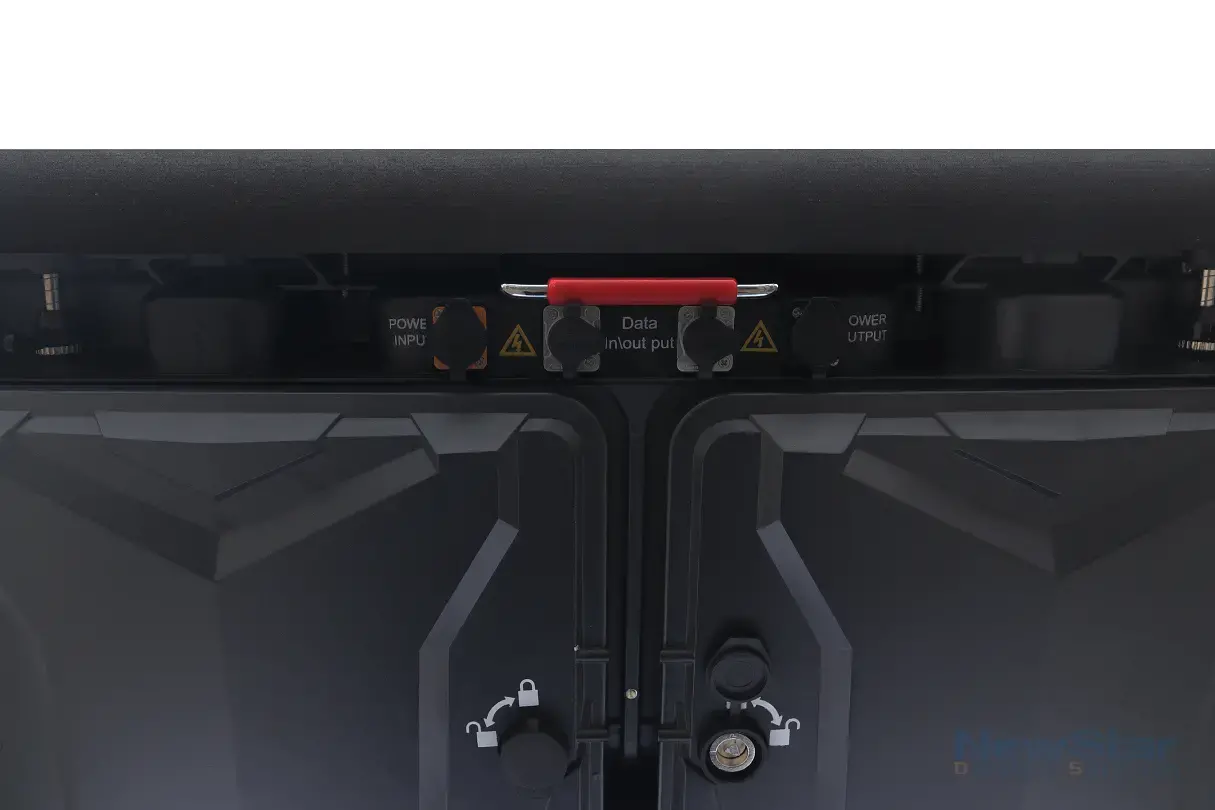

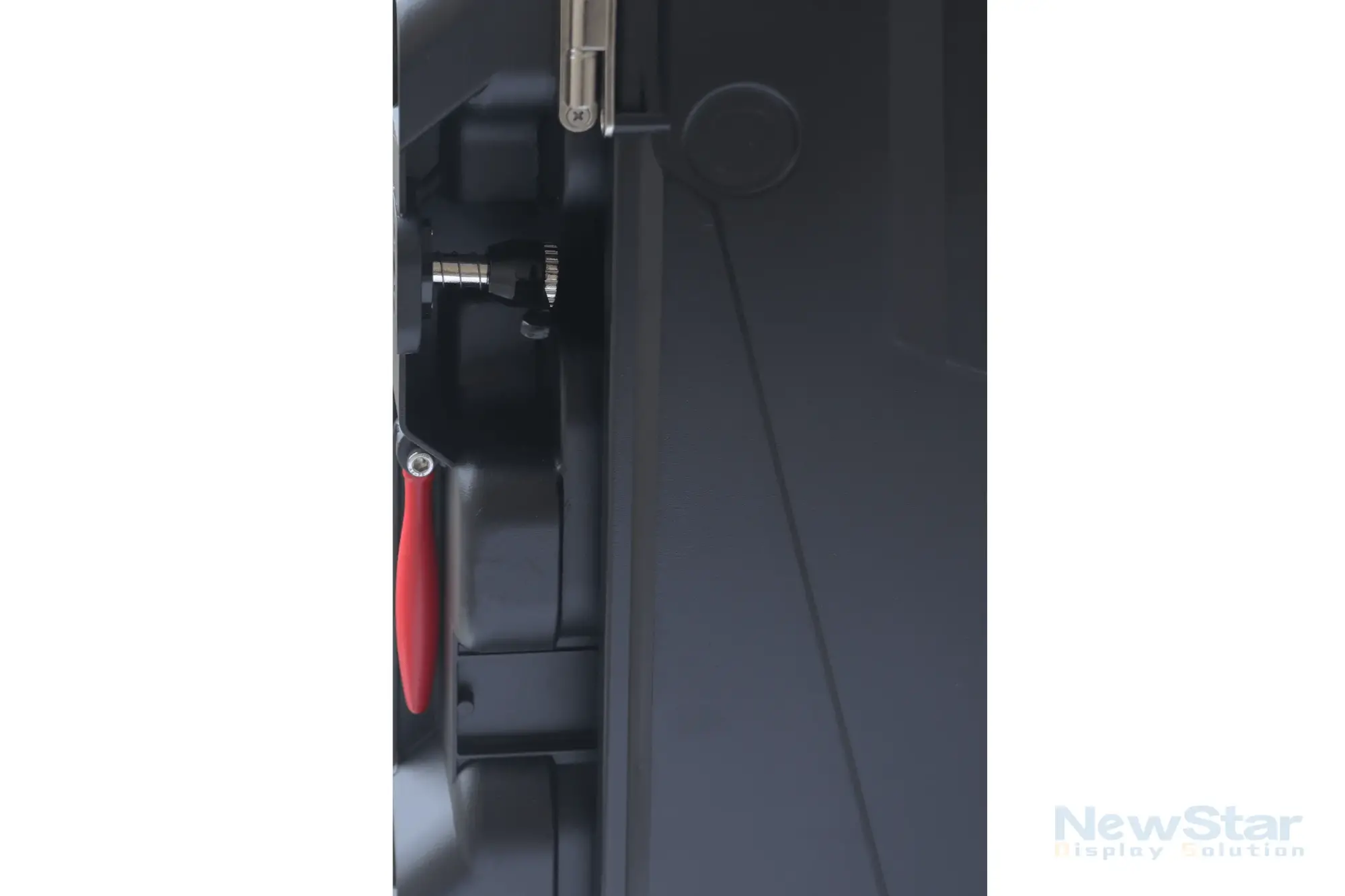

- Fast And Easy Maintenance
Step 1: Use “T” Wrench and insert one hole of the moduel then rotate “T” wrench in anti-clockwise direction to unlock.
Step 2: Repeat step 1 on the other hole to release the module separate from cabinet easily.
Step 3: Disconnect power and data cable.

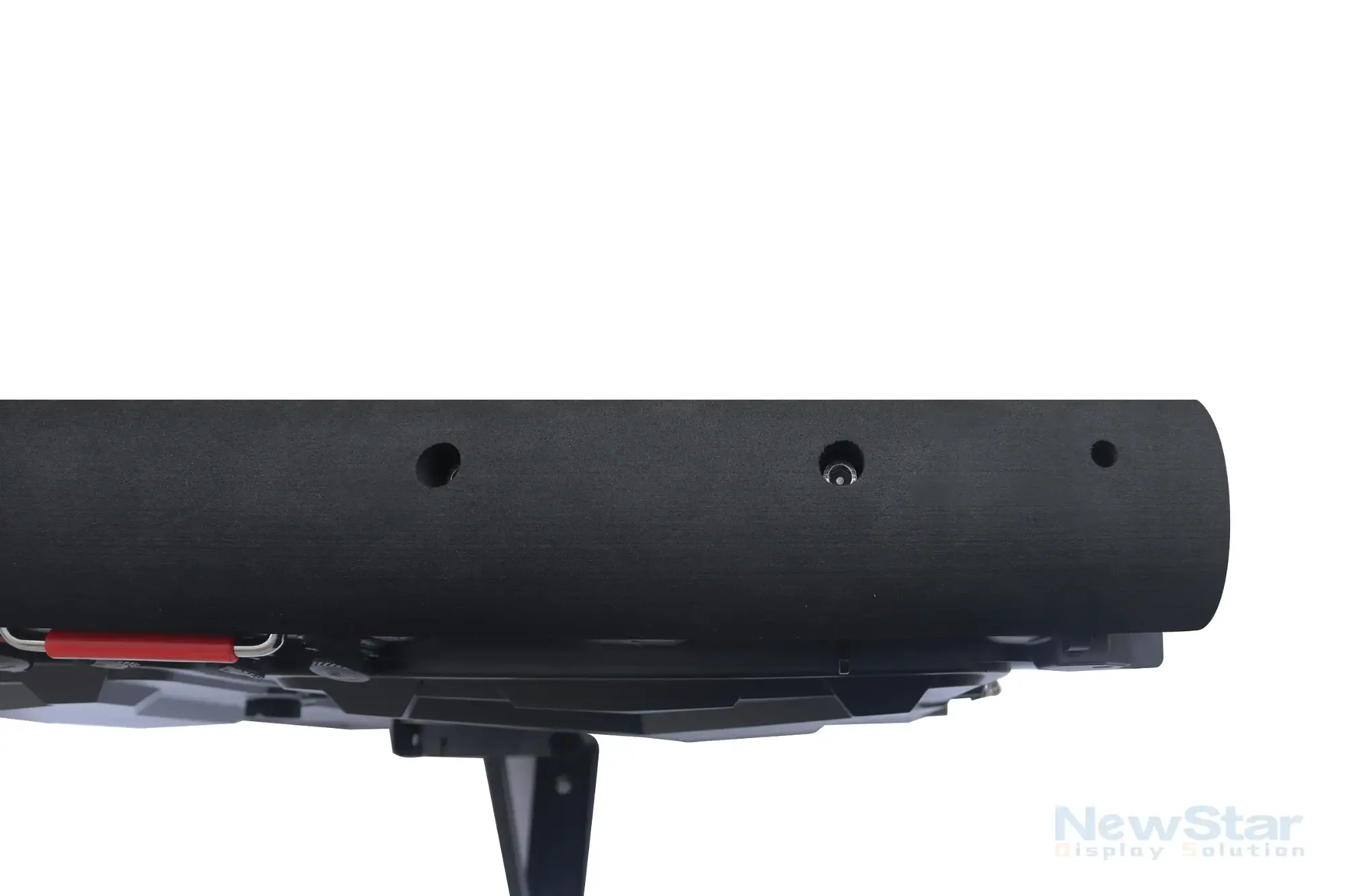

- Better Protection Both for Screen and Player
FS series in optimal design of soft silicone make and pillowcase make good protection for both scren and players who fell down on the screen somehow.

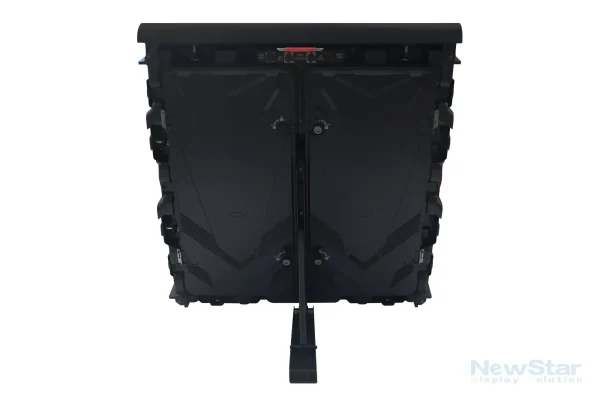

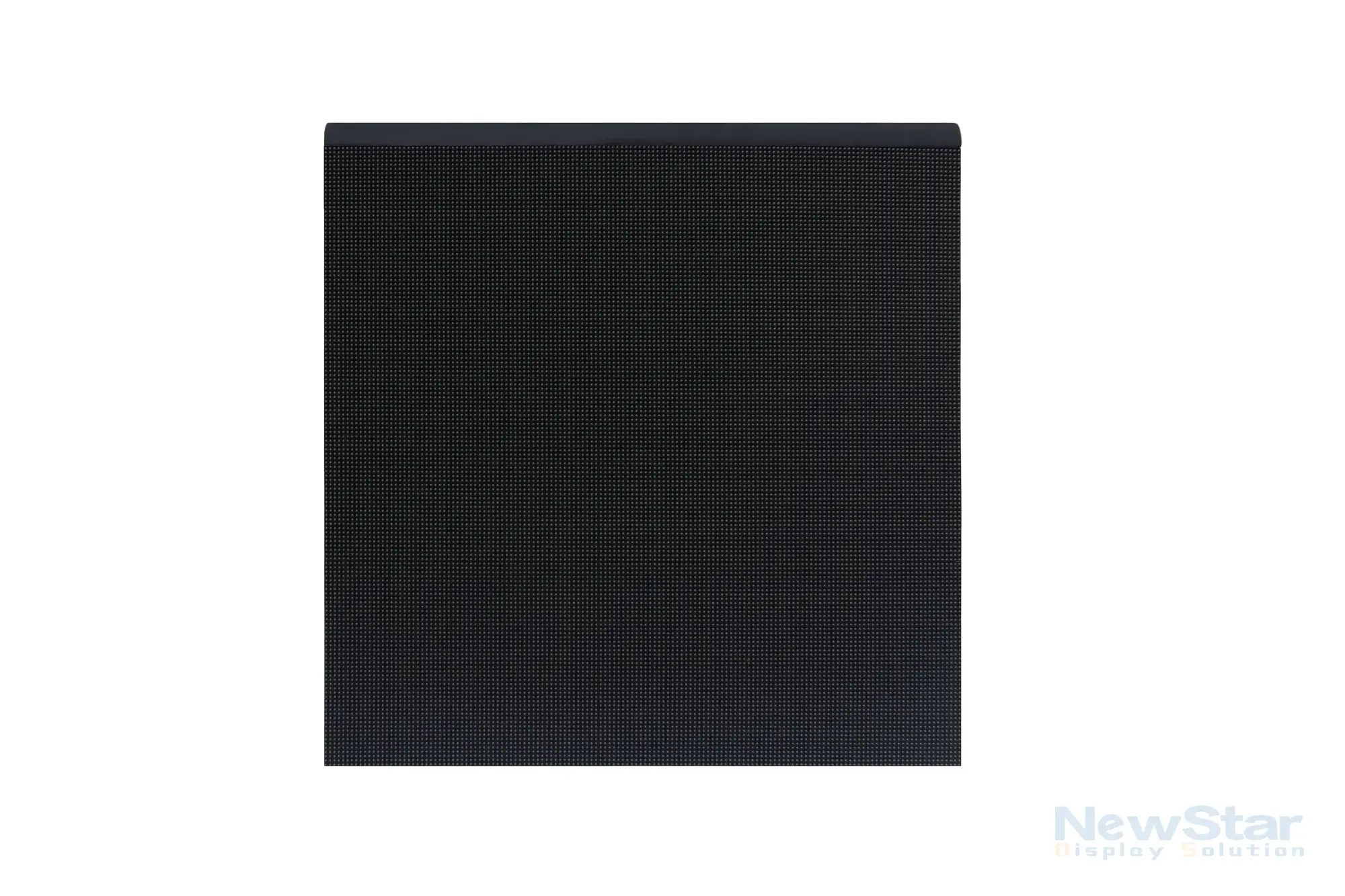

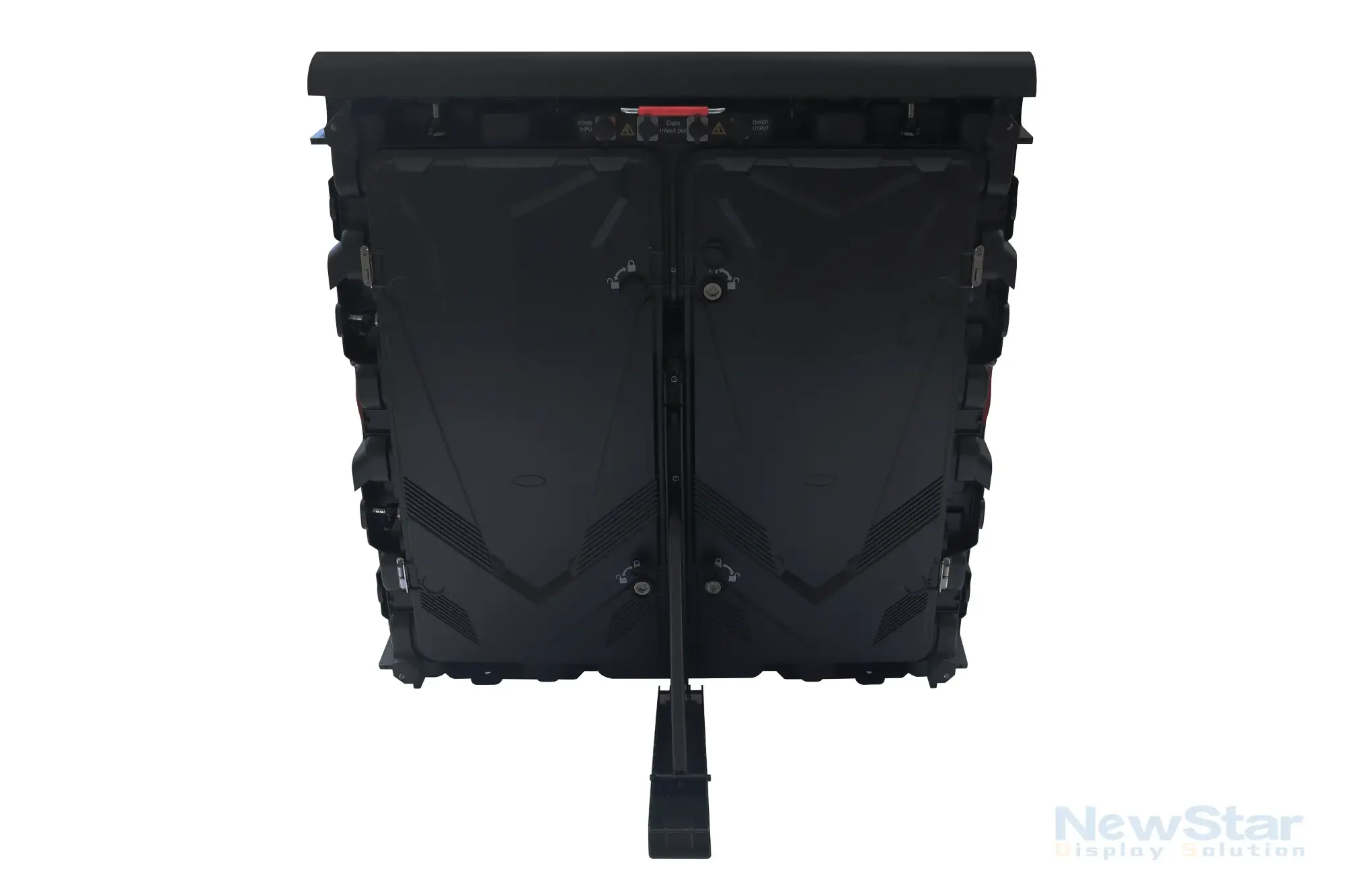

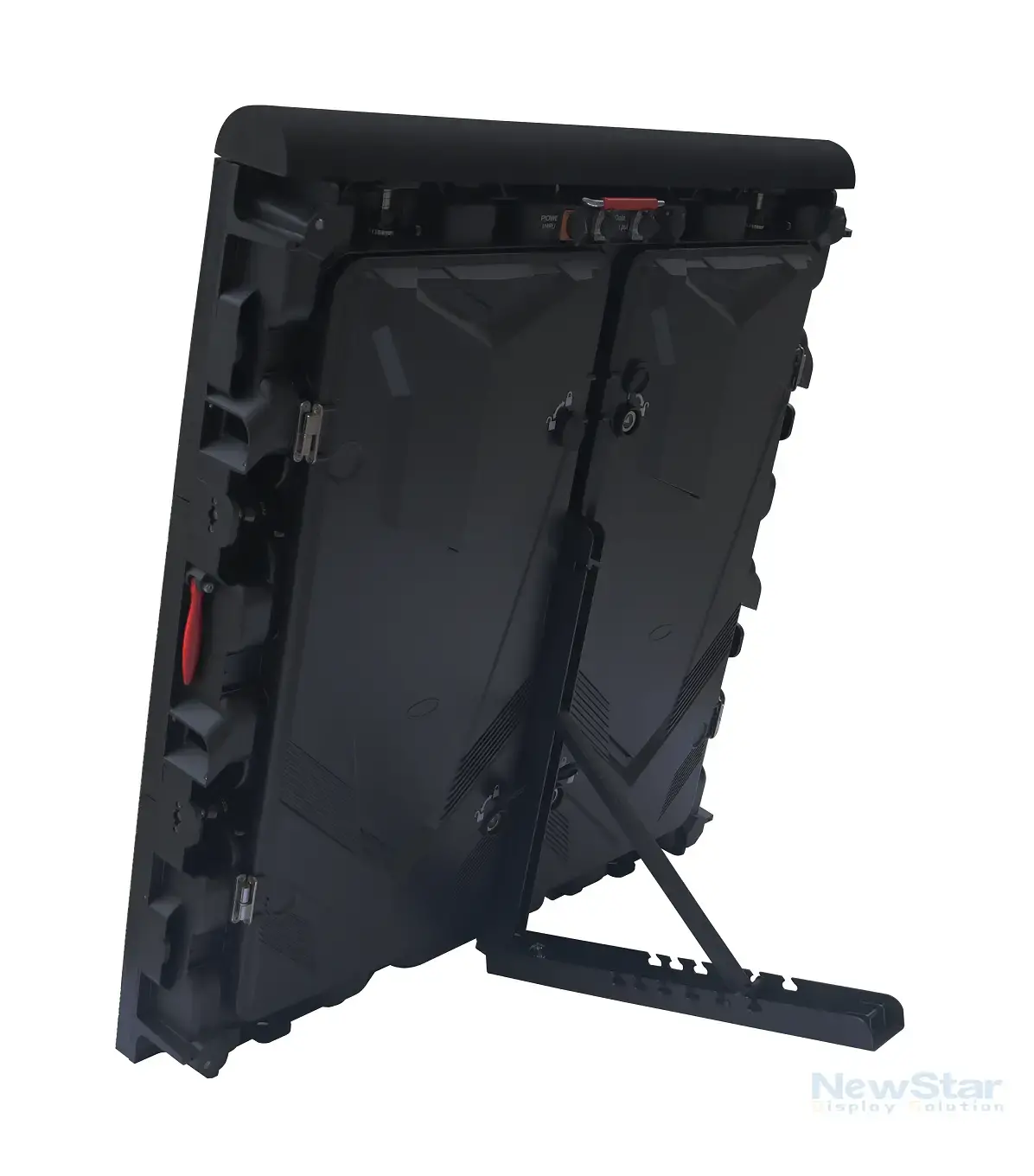

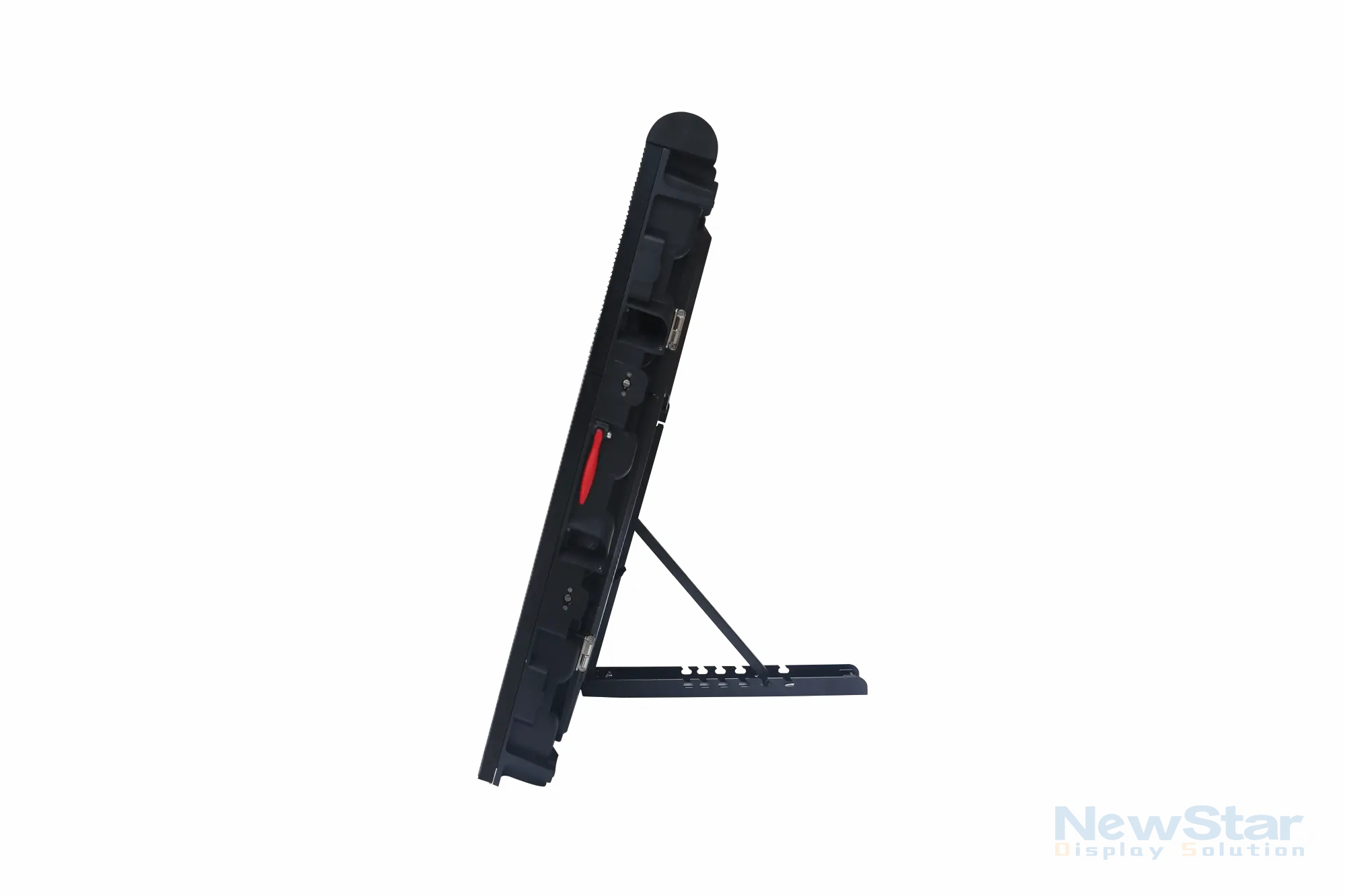

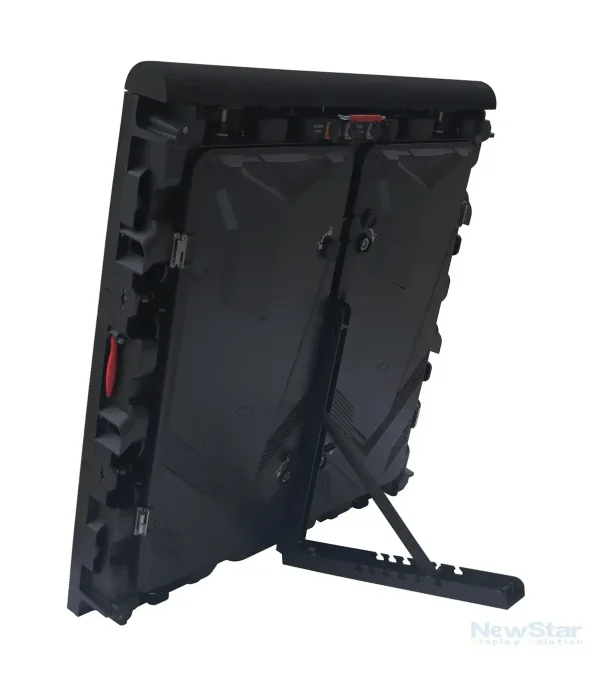

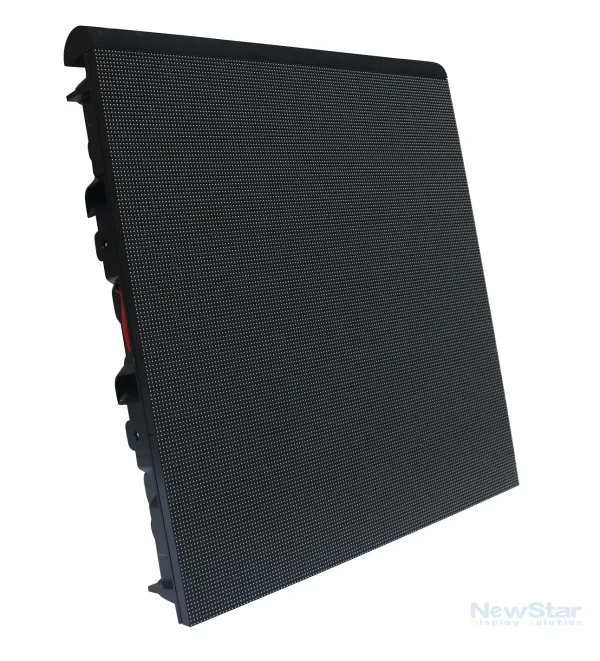

- Cabinet Appearance and Size
To ensure that you have correct solution of OS series, please download the specifications have a look at in detail.
| Model no. | OS 660 | OS 800 | OS 1000 |
| Pixel Pitch | 1.25mm | 8mm | 10mm |
| Pixel Configuration | SMD2727 | SMD2727 | SMD2727 |

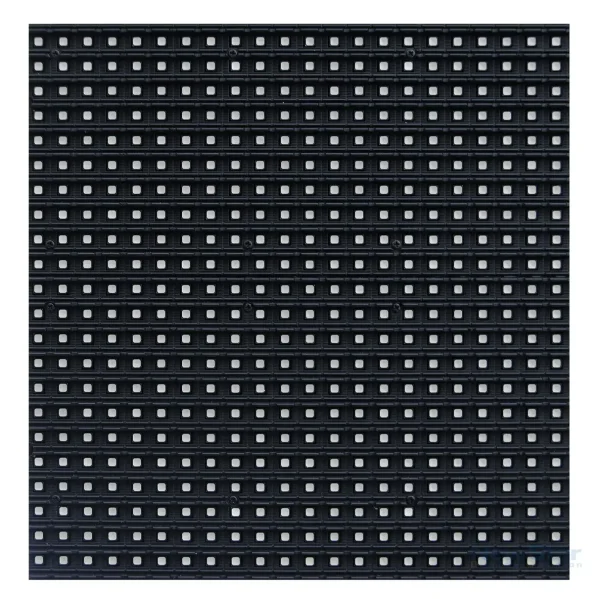

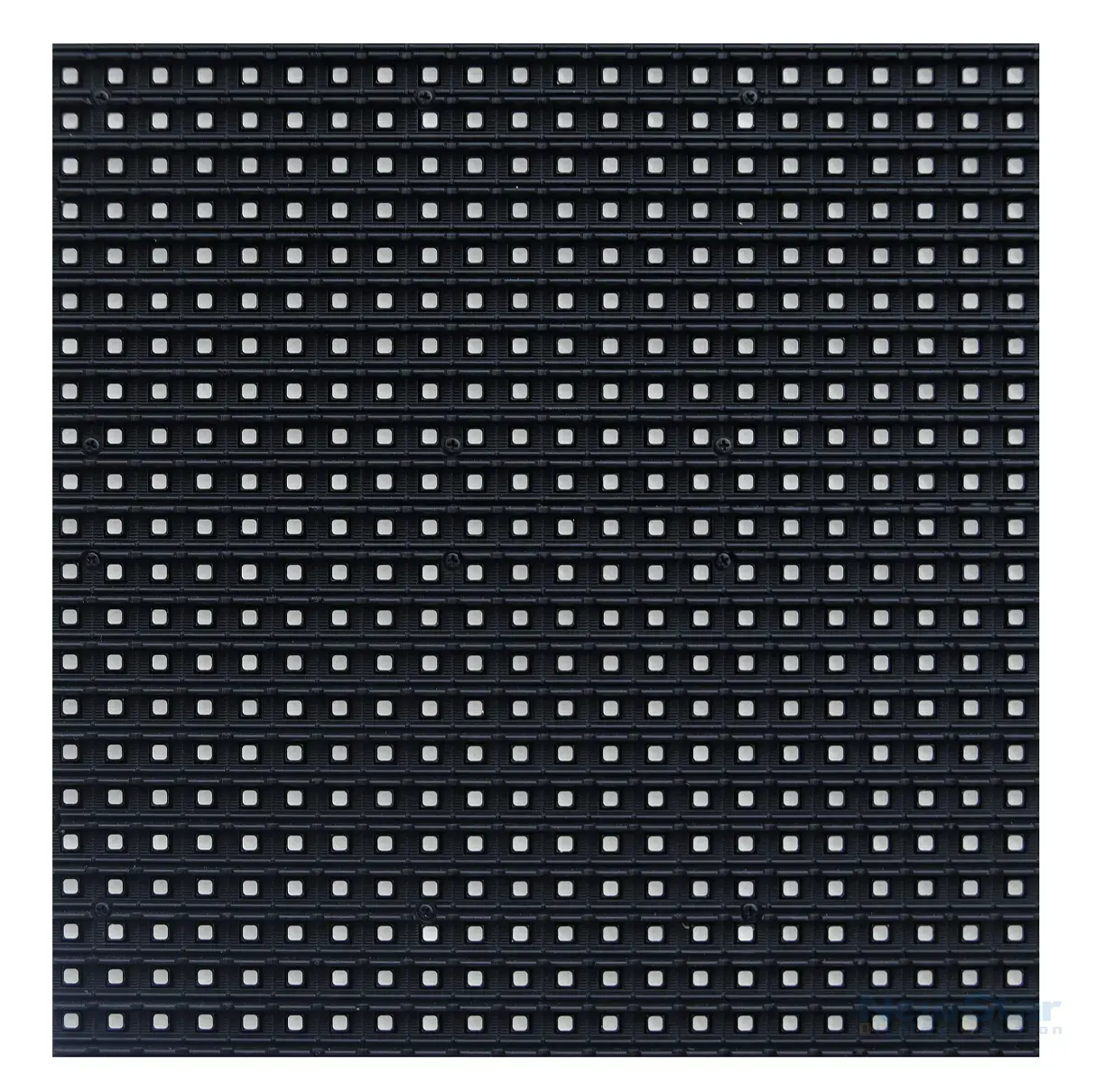

| Module Size (w x h) | 320 x 320mm | 320 x 320mm | 320 x 320mm |
| Module Resolution | 48 x 48 pixels | 40 x 40 pixels | 32 x 32 pixels |
| Panel Resolution (H x V) | 144 x 144 | 120 x 120 | 96 x 96 |
| Pixel Density (dots/m2) | 22500 | 15625 | 10000 |
| Drive Mode | 1/6 | 1/4 | 1/2 |
| Brightness (cd/m2) | Up to 10000 nits | ||
| Panel Dimension | 960 x 960 x 135 mm | ||
| Panel Dimension (Inch) | 37.79″ x 37.79″ x 5.31″ | ||
| Color Processing (bit) | 14-18 bit | ||
| Color Temperature | 6500 – 9300K | ||
| Grey Level | ≥ 16384 | ||
| Refresh Rate | ≥ 3840Hz | ||
| Viewing Angle (H/V) | High Mask 140/65 or Normal Mask 140/140 | ||
| Input Voltage | AC 110V – 240V | ||
| Input Power Frequency | 50 / 60Hz | ||
| Power Consumption (Avg) | ≤ 274W/m2 | ||
| Power Consumption (Max) | ≤ 830W/m2 | ||
| Frame Material | Die Cast Aluminium | ||
| Weight per panel | 34 Kg | ||
| Operational Temp / Humidity | -20°-60°C, 10-90% RH/-4°-122°F, 10-90% RH | ||
| IP Rating | Outdoor IP65 Front / Rear | ||
| Maintenance Method | Front & Rear | ||
