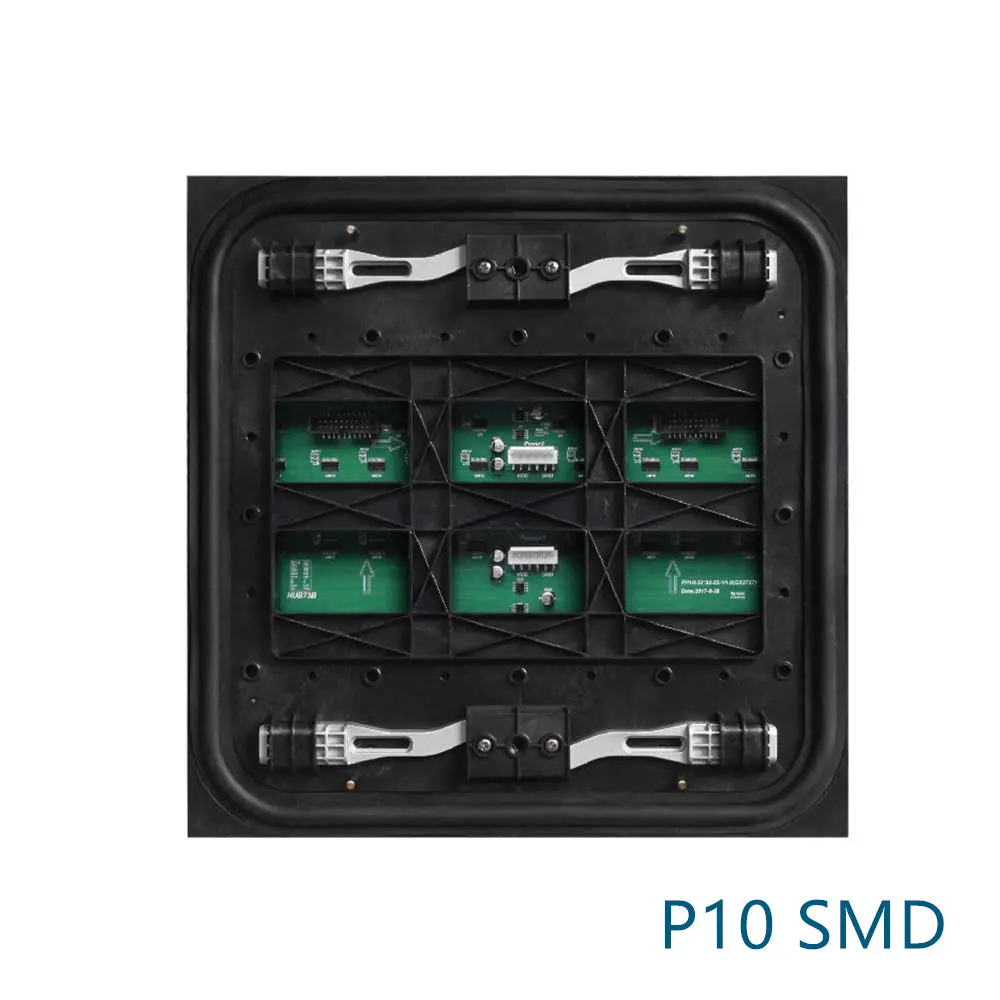

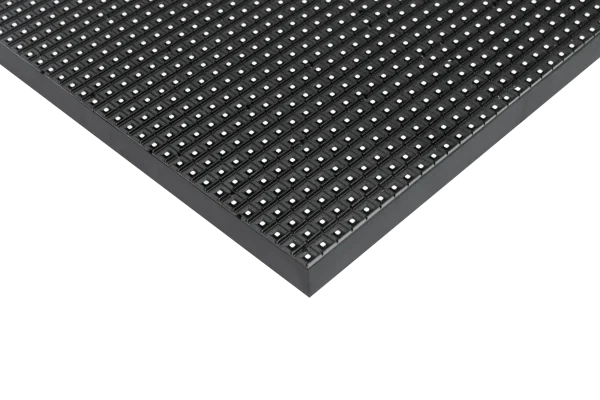

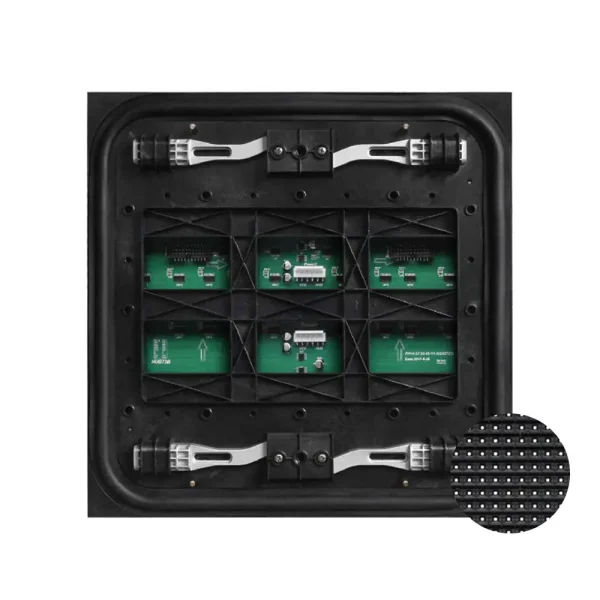

P10 SMD Outdoor LED Module 320 x 320
For product pricing, customization, or other inquiries:
Share to:
Front Service Outdoor LED Module
LED Type: SMD2727
Pixel Pitch: 10mm
Module Size: 320mm x 320mm
| Specifications | ||||
| Physical Parameters |
Pixel Pitch（ mm） | 10mm | ||
| LED Configuration | SMD2727 | |||
| Module Resolution(dots) | 32 x 32 | |||
| Pixel Density（ dots /m²） | 10000 | |||
| Module Size（W x H x D）/( mm) | 320x320mm | |||
| Module Weight( Per/kg) | 1.80 Kg | |||
| Optical Processing | Color processing (Bit) | 14~16 bit | ||
| Refresh Rate（Hz） | 1920Hz~3840Hz | |||
| Driving Mode(scan) | 1/2 | |||
| Brightness（ nit） | 7500~10000nit | |||
| Viewing Angle (H/V) | 140/65 (High Mask Design) | |||
| Viewing Angle（ H/V） | 140/140 (Normal Mask) | |||
| Electrical Parameters |
Input Voltage（V） | AC110/220V±10% | ||
| Input Power Frequency（Hz） | 50/60 | |||
| Max Power（W/pcs） | ≤85 | |||
| Average Power（ W/pcs） | 29 | |||
| Operating Environment | Storage Temperature (℃） | From ‘-10 to 50 | ||
| Operating Temperature（ ℃） | From ‘0 to 40 | |||
| Storage Humidity（RH） | -20°-60°C, 10-90% RH | |||
| Operating Humidity（RH） | -4°-122°F, 10-90% RH | |||
| IP Rating | IP65 | |||
| Lifetime（hrs） | 100000 | |||
| Usage Environment | outdoor fixed installation | |||
| Maintenance Method | Front/Rear Maintenance | |||
