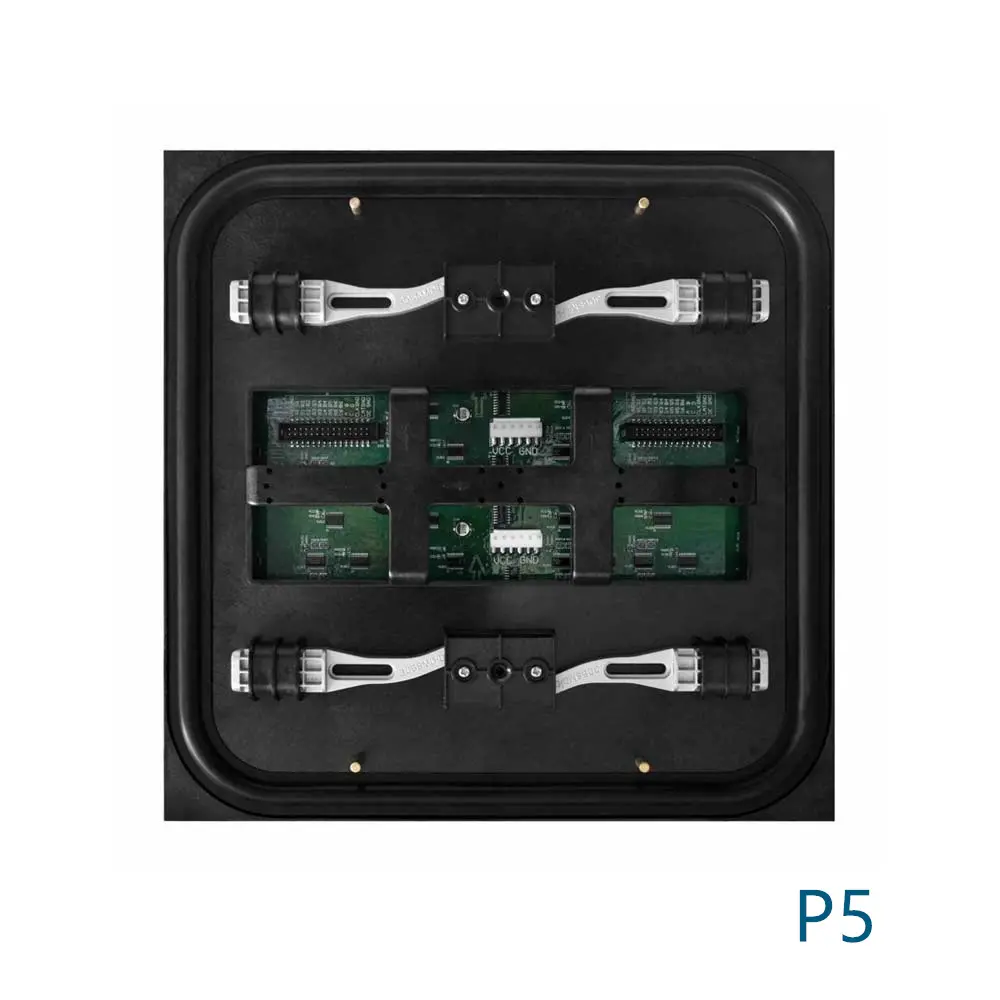

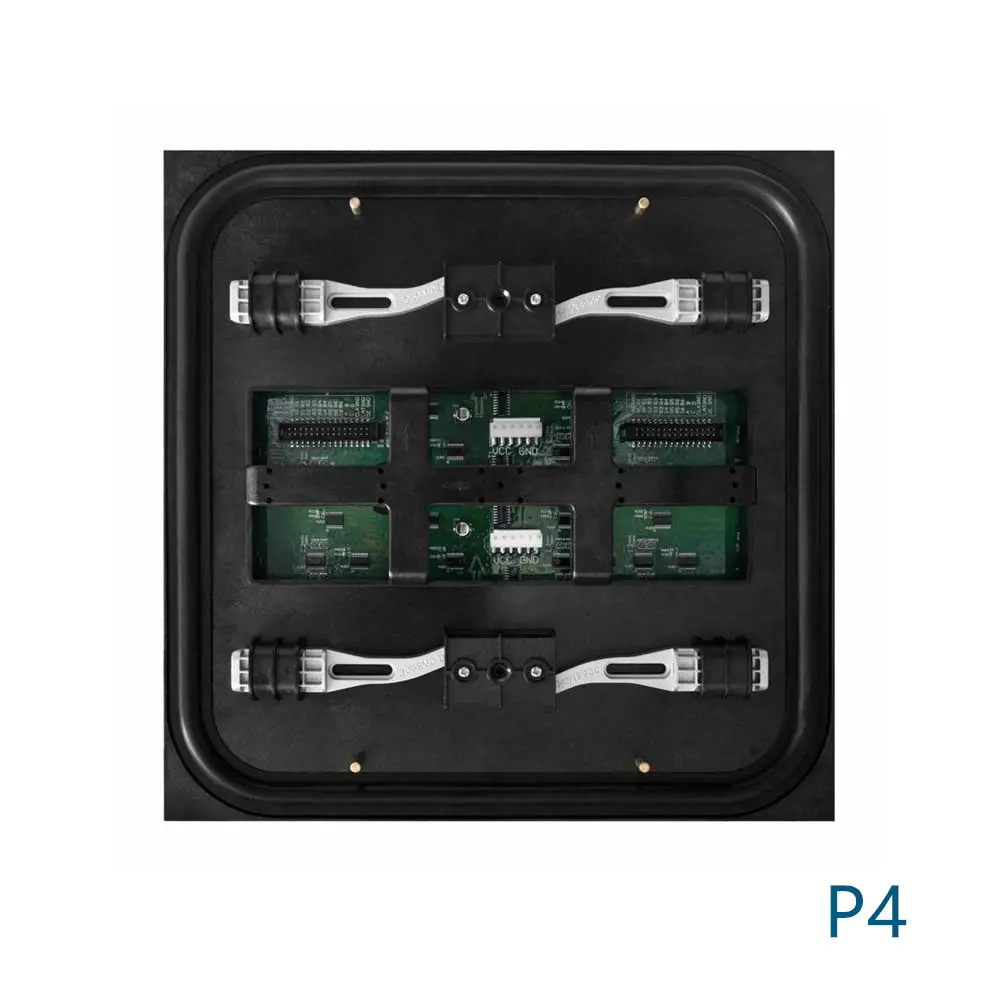

P4/P5 Outdoor LED Module SMD 320 x 320mm
For product pricing, customization, or other inquiries:
Share to:
Front Service Outdoor LED Module
LED Type: SMD1921
Pixel Pitch: 4mm/5mm
Module Size: 320 x 320mm
| Specifications | |||
| Physical Parameters |
Pixel Pitch（ mm） | 4mm | 5mm |
| LED Configuration | SMD1921 | SMD1921 | |
| Module Resolution(dots) | 80×80 | 64×64 | |
| Pixel Density（ dots /m²） | 62500 | 40000 | |
| Module Size（W x H x D）/( mm) | 320x320mm | 320x320mm | |
| Module Weight( Per/kg) | 1.6 Kg | 1.6 Kg | |
| Optical Processing | Color processing (Bit) | 15bit | 15bit |
| Refresh Rate（Hz） | 3840Hz | 3840Hz | |
| Driving Mode(scan) | 1/10 | 1/8 | |
| Brightness（ nit） | ≥5500 | ≥5500 | |
| Viewing Angle (H/V) | 140/65 (High Mask) | 140/65 (High Mask) | |
| Viewing Angle（ H/V） | 140/140 (Normal Mask) | 140/140 (Normal Mask) | |
| Electrical Parameters |
Input Voltage（V） | AC110/220V±10% | AC110/220V±10% |
| Input Power Frequency（Hz） | 50/60 | 50/60 | |
| Max Power（W/pcs） | ≤85 | ≤85 | |
| Average Power（ W/pcs） | 29 | 29 | |
| Operating Environment | Storage Temperature (℃） | From ‘-10 to 50 | From ‘-10 to 50 |
| Operating Temperature（ ℃） | From ‘0 to 40 | From ‘0 to 40 | |
| Storage Humidity（RH） | 10%~90% | 10%~90% | |
| Operating Humidity（RH） | 10%~90% | 10%~90% | |
| IP Rating | IP65/IP54 | IP65/IP54 | |
| Lifetime（hrs） | 100000 | 100000 | |
| Usage Environment | outdoor fixed installation | outdoor fixed installation | |
| Maintenance Method | Front/Rear Maintenance | Front/Rear Maintenance | |
