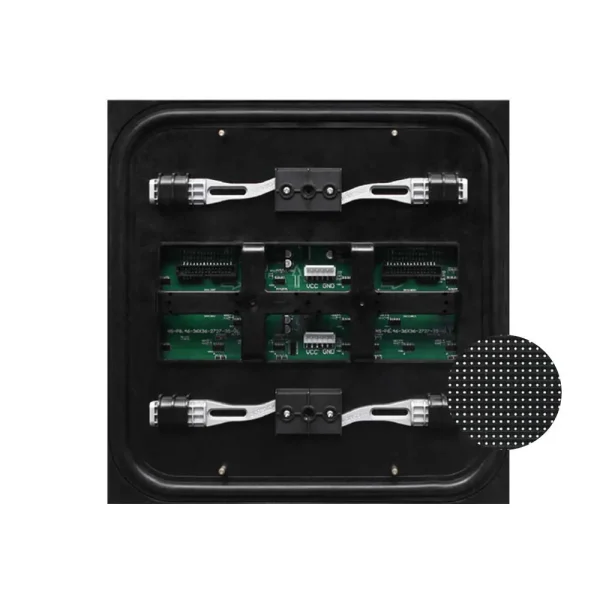

P6/P8/P10 Outdoor LED Module SMD 304.8 x 304.8mm
For product pricing, customization, or other inquiries:
Share to:
Front Service Outdoor LED Module
LED Type: SMD2727

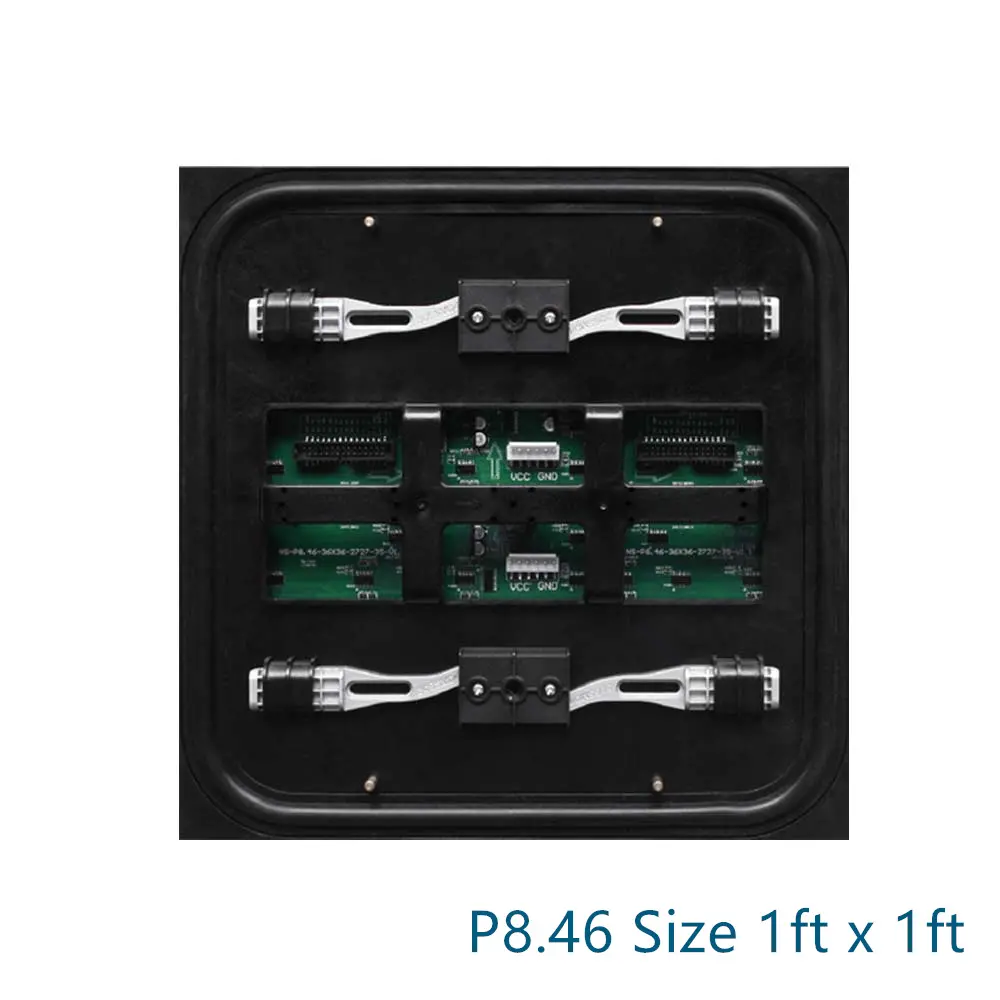

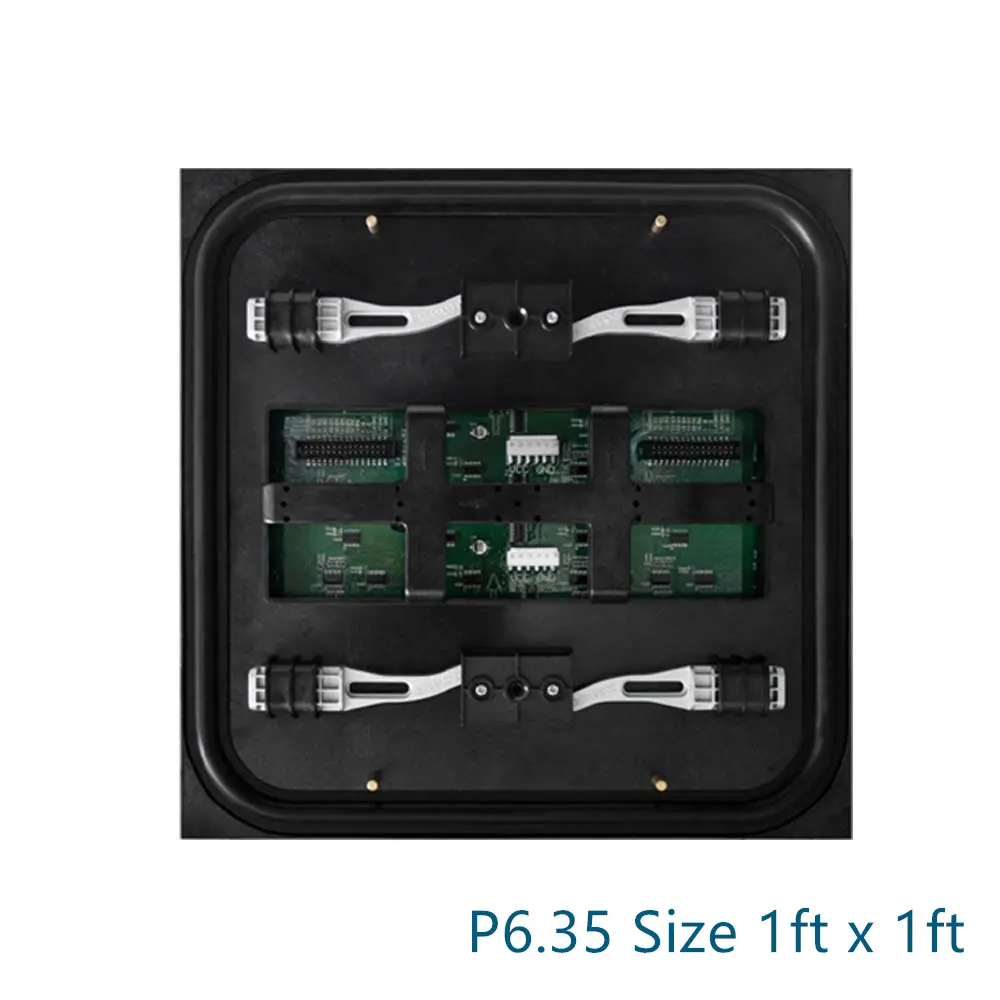

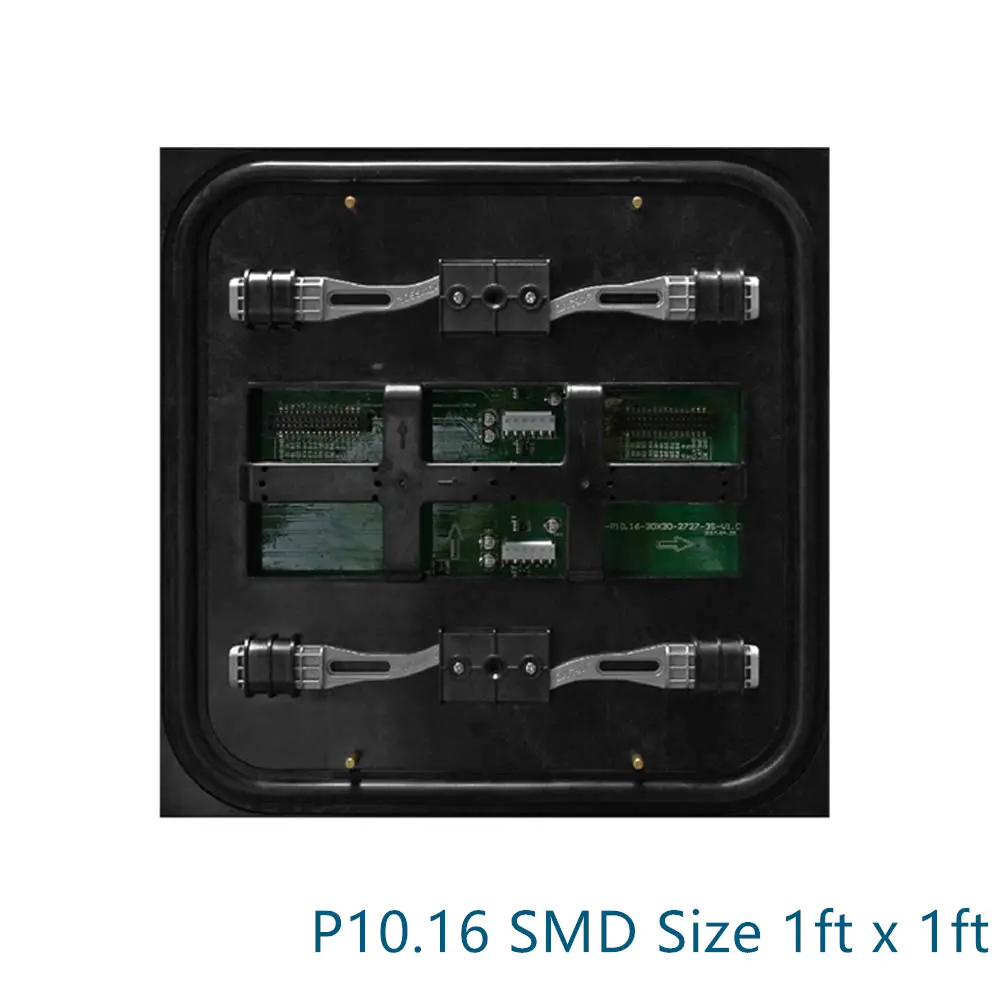

Pixel Pitch: 6.35mm/8.46mm/10.16mm
Module Size: 304.8mm x 304.8mm
| Specifications | ||||
| Physical Parameters |
Pixel Pitch（ mm） | 6.35 mm | 8.46 mm | 10.16mm |
| LED Configuration | SMD2727 | SMD | SMD27227 | |
| Module Resolution(dots) | 48 x 48 | 36 x 36 | 30×30 | |
| Pixel Density（ dots /m²） | 22500 | 15625 | 9604 | |
| Module Size（W x H x D）/( mm) | 304.8mm x 304.8mm | 304.8mm x 304.8mm | 304.8mm x 304.8mm | |
| Module Weight( Per/kg) | 1.8 Kg | 1.8 Kg | 1.9kg | |
| Optical Processing | Color processing (Bit) | 14~16bit | ||
| Grey Level | ≥1920Hz | |||
| Refresh Rate（Hz） | 1/4 | 1/3 | 1/3 | |
| Driving Mode(scan) | 6500nit~10000nit | |||
| Brightness（ nit） | 140/55-90 (High Mask Design) | |||
| Viewing Angle（ H/V） | 140/140 (Normal Mask) | |||
| Electrical Parameters |
Input Voltage（V） | AC110/220V±10% | ||
| Input Power Frequency（Hz） | 50/60 | |||
| Max Power（W/pcs） | ≤ 700 | ≤ 700 | ≤840 | |
| Average Power（ W/pcs） | 240 | 240 | 280 | |
| Operating Environment | Storage Temperature (℃） | From ‘-10 to 50 | ||
| Operating Temperature（ ℃） | From ‘0 to 40 | |||
| Storage Humidity（RH） | -20°-60°C, 10-90% RH | |||
| Operating Humidity（RH） | -4°-122°F, 10-90% RH | |||
| IP Rating | IP65 | |||
| Lifetime（hrs） | 100000 | |||
| Usage Environment | outdoor fixed installation | |||
| Maintenance Method | Front/Rear Maintenance | |||
