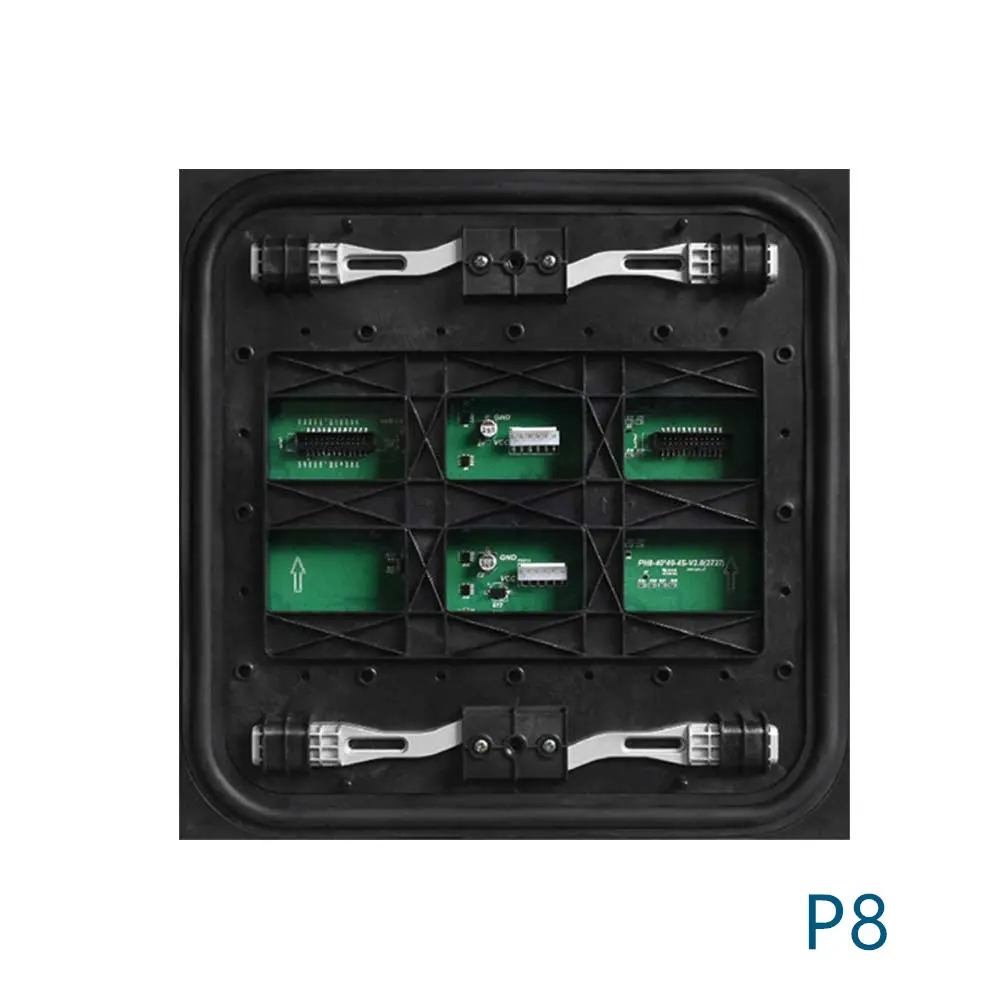

P8 SMD Outdoor LED Module 320 x 320
For product pricing, customization, or other inquiries:
Share to:
Front Service Outdoor LED Module
LED Type: SMD2727
Pixel Pitch: 8mm
Module Size: 320mm x 320mm
| Specifications | ||
| Physical Parameters |
Pixel Pitch（ mm） | 8mm |
| LED Configuration | SMD2727 | |
| Module Resolution(dots) | 40×40 | |
| Pixel Density（ dots /m²） | 15625 | |
| Module Size（W x H x D）/( mm) | 320x320mm | |
| Module Weight( Per/kg) | 1.85 Kg | |
| Optical Processing | Color processing (Bit) | 14-16bit |
| Refresh Rate（Hz） | ≥1920Hz | |
| Driving Mode(scan) | 1/4 | |
| Brightness（ nit） | 6500~10000nit | |
| Viewing Angle (H/V) | 140/65 (Newstar’s High Mask Design) | |
| Viewing Angle（ H/V） | 140/140 (Normal Mask) | |
| Electrical Parameters |
Input Voltage（V） | AC110/220V±10% |
| Input Power Frequency（Hz） | 50/60 | |
| Max Power（W/pcs） | ≤85 | |
| Average Power（ W/pcs） | 29 | |
| Operating Environment | Storage Temperature (℃） | From ‘-10 to 50 |
| Operating Temperature（ ℃） | From ‘0 to 40 | |
| Storage Humidity（RH） | 10%~90% | |
| Operating Humidity（RH） | 10%~90% | |
| IP Rating | IP65/IP54 | |
| Lifetime（hrs） | 100000 | |
| Usage Environment | outdoor fixed installation | |
| Maintenance Method | Front/Rear Maintenance | |
