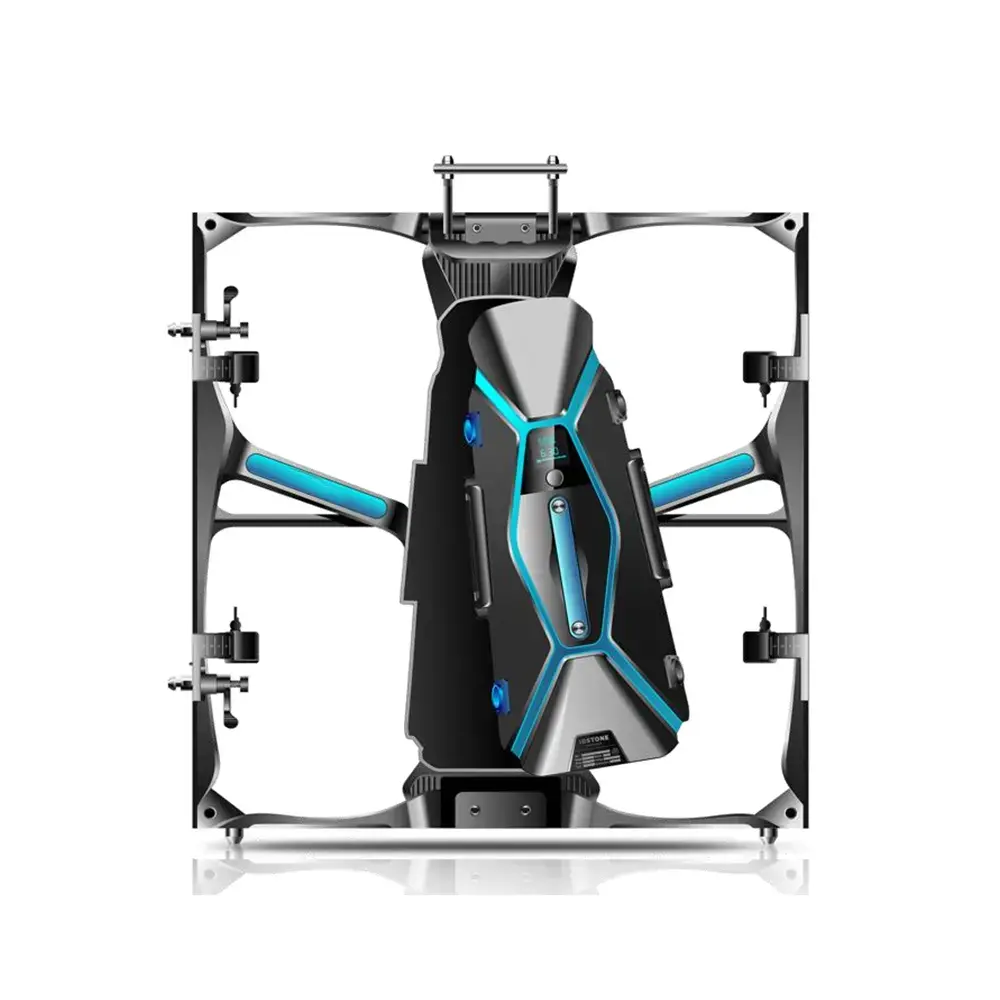

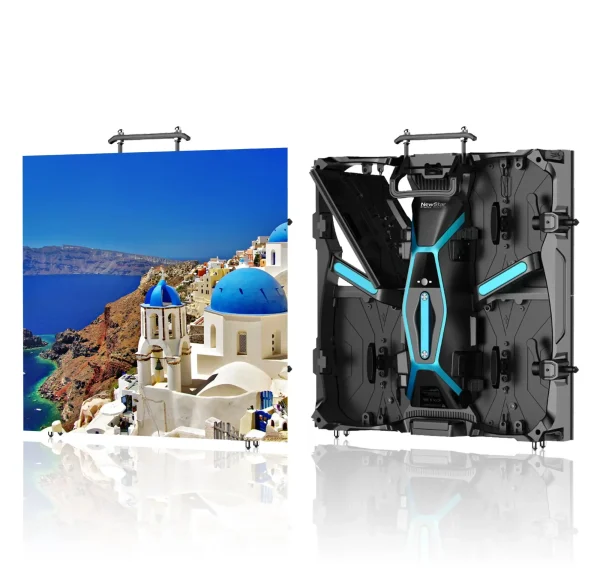

Warrior series is uncompromisingly designed for Indoor&outdoor rental applications in every respect. The visual experiences: excellent. The maintenance, installation and dismantling: super easy. The weight: super light. The connection: multiple choices available. The curve: reliable and precise.
Features
Exceptional Visual Experiences
Optimum Screen Flatness
Modular Design for Easy Maintenance

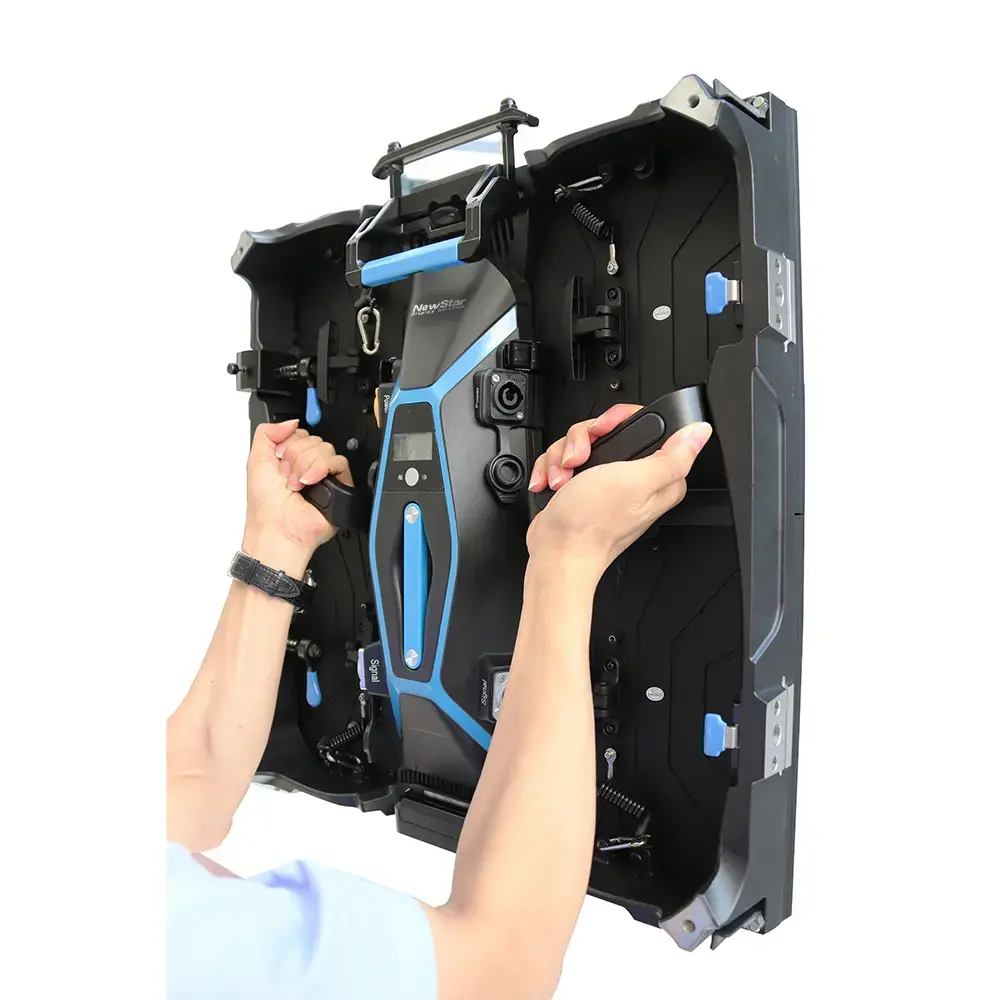

Quick Installation by Single Person
Super Lightweight Design – 9kg
Flat, Curved or Corner Screen
Universal Module – Maximize Your ROI
Reliable and Precise Curve
Product Features
Product Advantages
Control Box Front And Rear Service

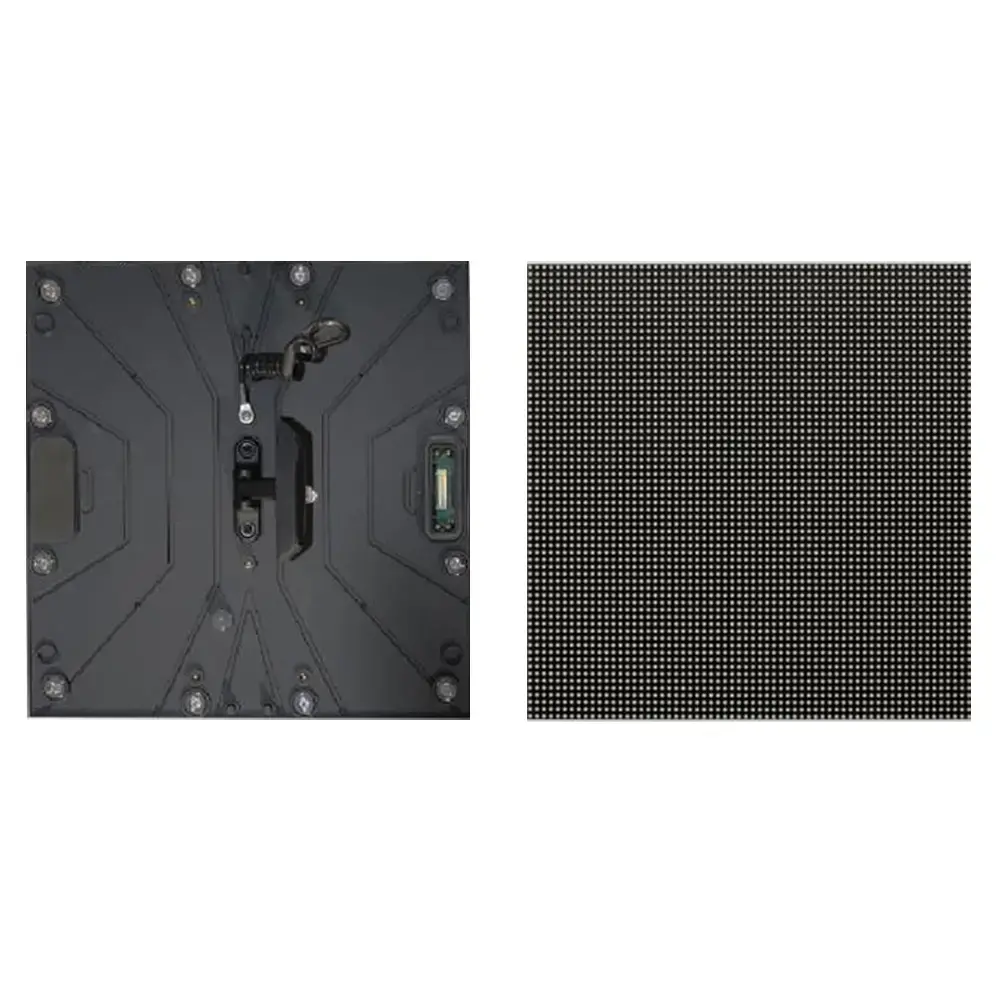

Intelligent Module Design
Calibration data can be saved in each module Data can be stored and corrected, and modules can be replaced on the cabinet without changing what is displayed.

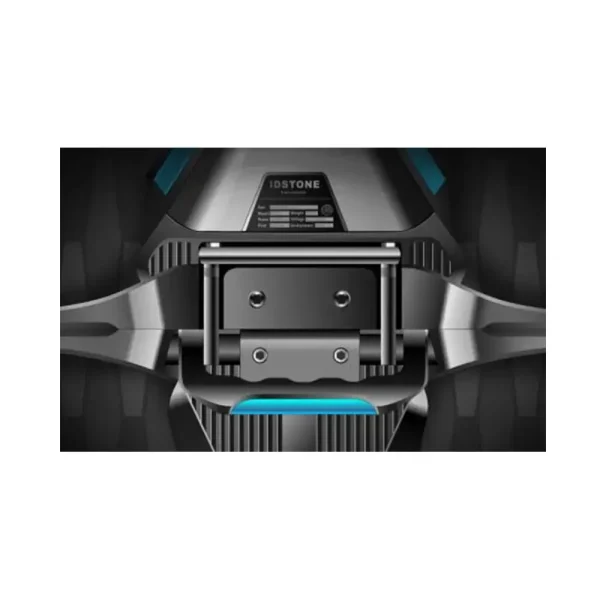

Smart lock saves installation time and makes job easier.

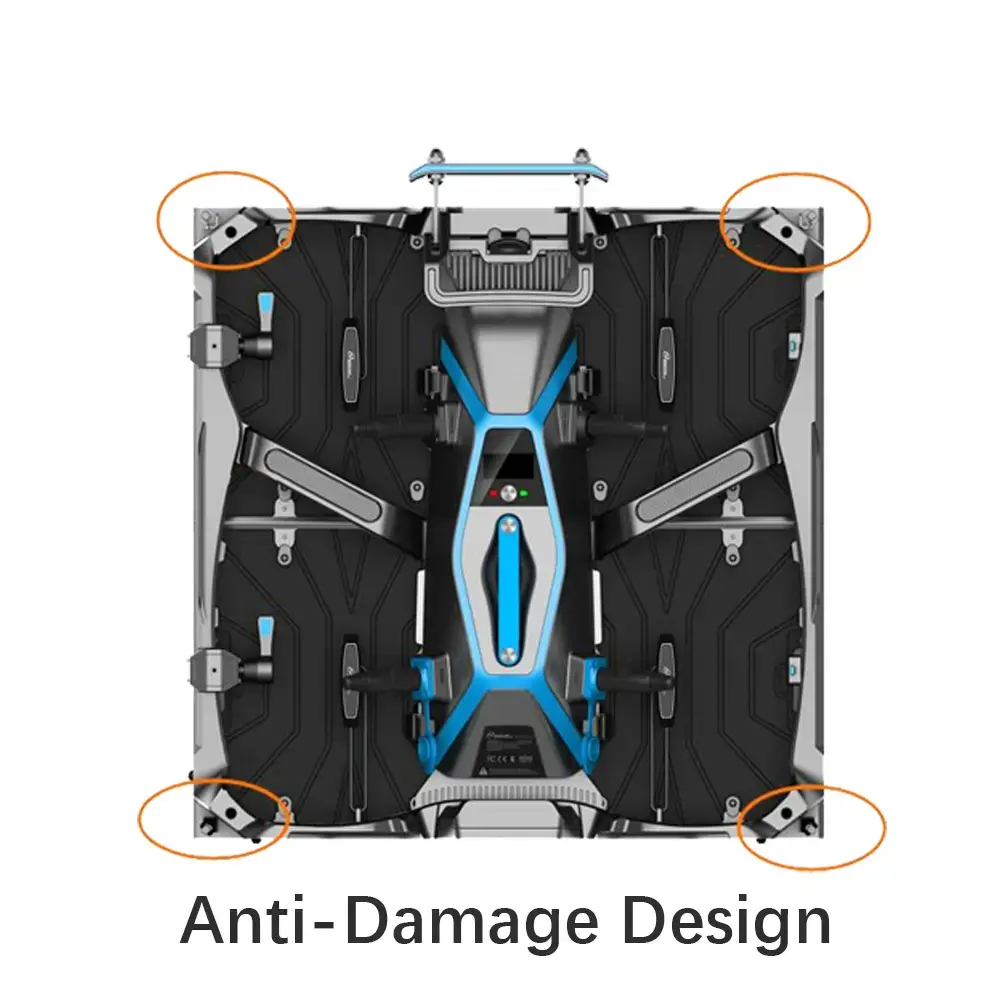

Corner-Care

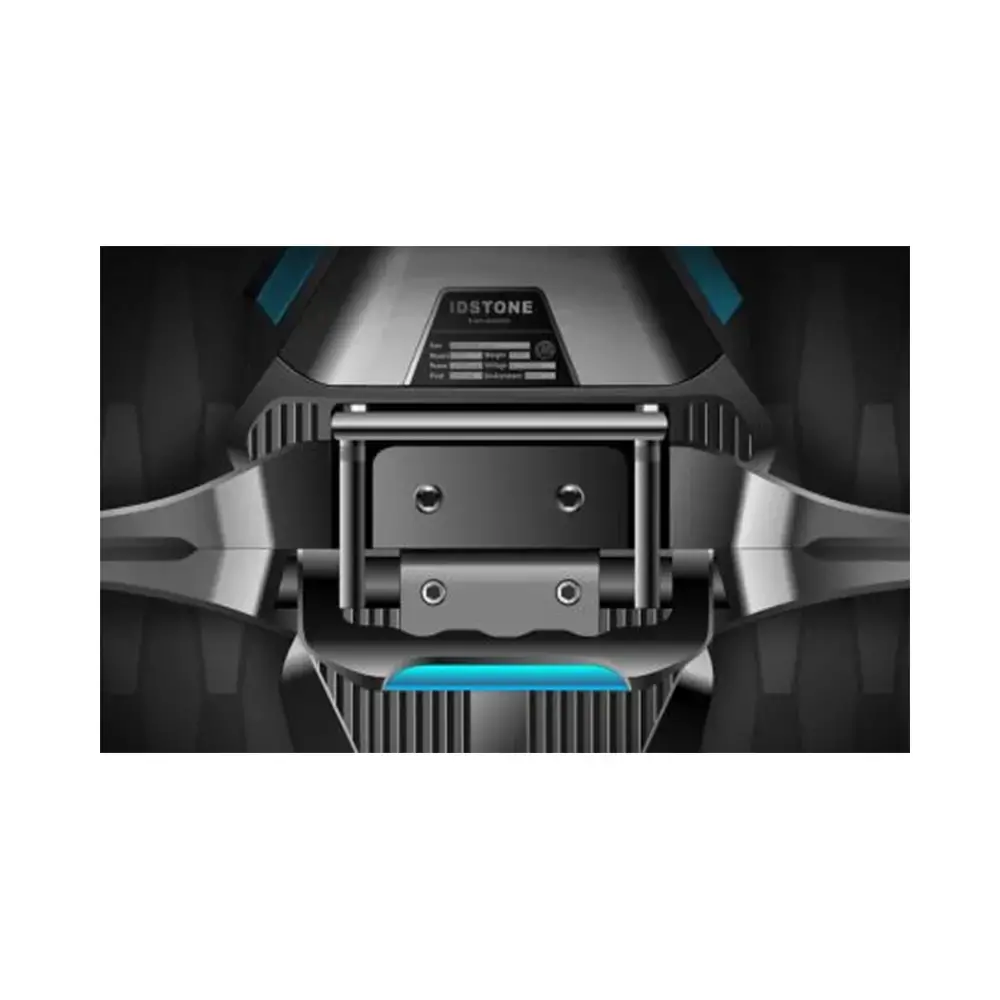

Control Box Front And Rear Service
Installation

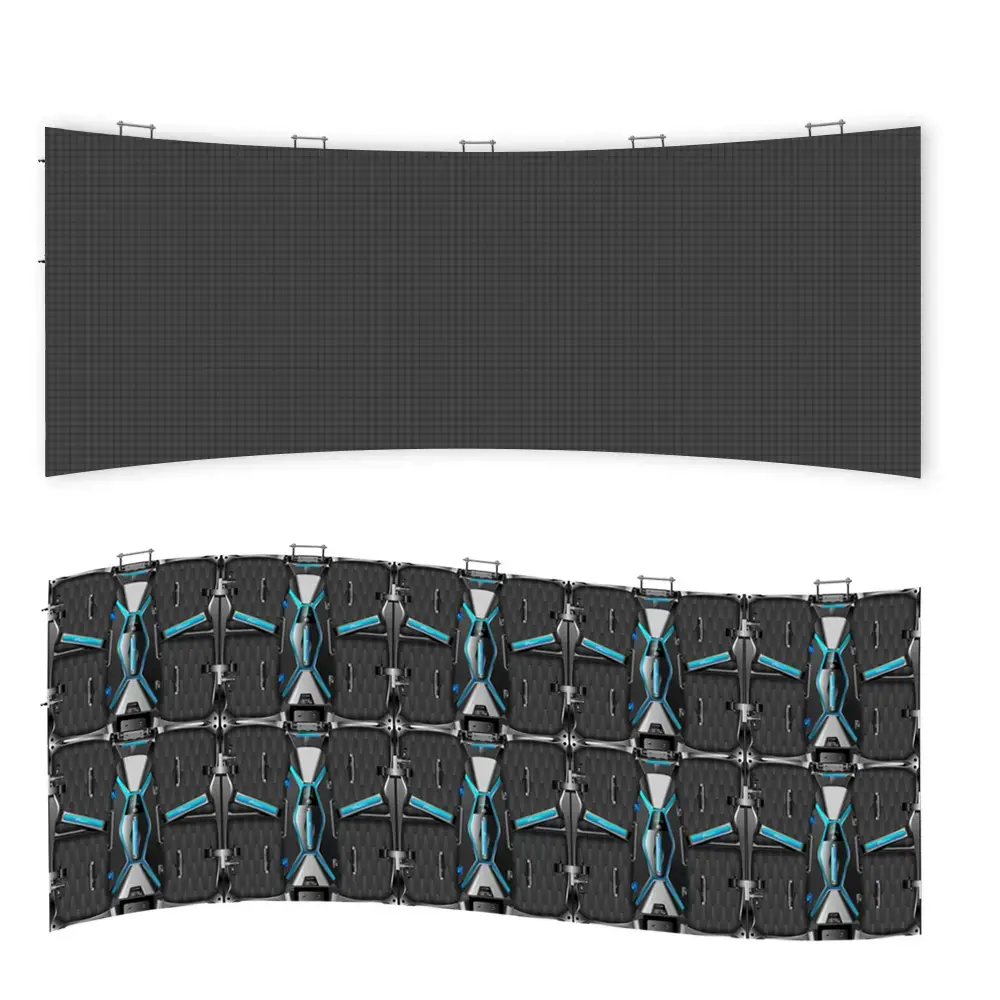

Curved Design Plus or minus 10 degree for convex or concave shape
Package-Flight Case
| Model no. | DR 191 | DR 261 | DR 290 | DR 390 | DR 480 |
| Pixel Pitch (mm) | 1.953 | 2.604 | 2.976 | 3.906 | 4.807 |
| Led Type | SMD1515 | SMD1515 | SMD1415 | SMD1921 | SMD1921 |
| Module Resolution | 128 x 128 | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Module Size (mm) | 250 x 250 | ||||
| Cabinet Size (mm) | 500 x 500 / 500 x 1000 | ||||
| Cabinet Resolution (pixels) | 256 x 256 256x 512 |
192 x 192 192 x 384 |
168 x 168 168 x 336 |
128 x 128 128 x 256 |
104 x 104 104 x 208 |
| Pixel Density (pixels/m2) | 262144 | 147456 | 112896 | 65536 | 43264 |
| Driving Mode | 1/32 | 1/32 | 1/21 | 1/16 | 1/13 |
| Minimum Viewing Distance | ≥ 2.4m | ≥ 3.2m | ≥ 2.9m | ≥ 3.9m | ≥ 4.8m |
| Brightness (nits) | 600 ~ 800 | ≥ 4000 | ≥ 4500 | ||
| IP Rating | Indoor IP45 | Outdoor IP65 | |||
| Refresh Rate | ≥ 3840Hz | ||||
| Color Processing | 13 – 18 bits | ||||
| Viewing Angle (H / V) | 160° / 160° | ||||
| Max Power Consumption | ≤ 580 W/m2 | ||||
| Average Power Consumption | ≤ 195 W/m2 | ||||
| Input Voltage | AC 110V – 240V, 50/60 Hz | ||||
| Operating Temperate | -20° ~ 60°C | ||||
| Operating Humidity | 10 – 90% | ||||
| Cabinet Material | Die-casting Aluminium | ||||
| Cabinet Weight | 9 Kg/Panel or 14 Kg/Panel | ||||
| Operating System | Windows | ||||
| Signal Soure Compatibility | DVI, HDMI 1.3, DP1.2, SDI, HDMI2.0, etc | ||||
